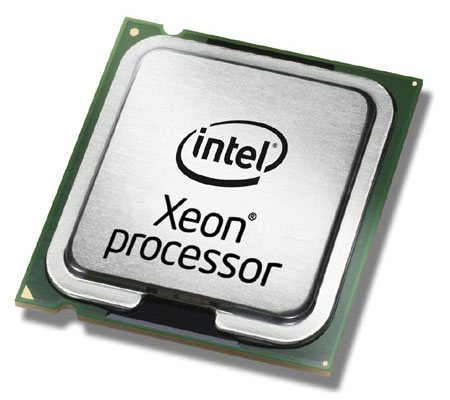

Cisco Intel Xeon E5-2630L v2 processor 2.4 GHz 15 MB Smart Cache1

Cisco Intel Xeon E5-2630L v2 processor 2.4 GHz 15 MB Smart Cache

Cisco Intel Xeon E5-2630L v2. Processor family: Intel® Xeon® E5 Family, Processor socket: LGA 2011 (Socket R), Processor lithography: 22 nm. Memory channels: Quad-channel, Maximum internal memory supported by processor: 768 GB, Memory types supported by processor: DDR3-SDRAM. Market segment: Server, Supported instruction sets: AVX, Scalability: 2S. Intel® Virtualization Technology (Intel® VT): VT-d, VT-x, Maximum internal memory: 786432 MB, Cache memory: 15 MB

Manufacturers: Cisco Systems , Cisco

SKU: 10651643

Manufacturer part number: UCS-CPU-E52630LB=

MSRP: $1,962.00

Price: $1,085.97

Qty:

The Xeon® Processor from Cisco is designed to deliver enhanced reliability and flexibility for server platforms. This processor offers excellent performance and headroom for peak Internet server loads, resulting in faster response times, support for more users and improved scalability.

Overview
Specifications
Contact Us

Products specifications

Attribute name	Attribute value
Maximum Memory	768 GB
Maximum internal memory	786432 MB
On-board graphics card	No
Intel Demand Based Switching	Yes
Supported instruction sets	AVX
Physical Address Extension (PAE)	46 bit
System bus rate	7.2 GT/s
Memory clock speeds supported by processor	800,1066,1333,1600 MHz
Tcase	63 °C
Processor base frequency	2.4 GHz
Intel® vPro™ Platform Eligibility	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Market segment	Server
Bus bandwidth	7.2
Bus type units	GT/s
Status	Launched
Processor brand name	Intel Xeon v2
Product family	Intel Xeon Processor E5 v2 Family
Cache memory	15 MB
Processor core voltage	0.65–1.30 V
Product name	Intel Xeon E5-2630L v2 (15M Cache, 2.40 GHz)
Born on date	Q3'13
Launch date	2013-09-10T00:00:00
Features
Component for	Server/workstation
ECC	Yes
Memory channels	Quad-channel
Product type	4
Other features
Processor ARK ID	75791
Processor
Processor family	Intel® Xeon® E5 Family
Processor manufacturer	Intel
Processor model	E5-2630LV2
Processor boost frequency	2.8 GHz
Processor cores	6
Processor threads	12
Processor cache	15360 KB
Bus type	QPI
CPU configuration (max)	2
PCI Express slots version	3.0
Processor cache type	Smart Cache
Processor codename	Ivy Bridge EP
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E5-2600 v2
Processor socket	LGA 2011 (Socket R)
Scalability	2S
Thermal Design Power (TDP)	60 W
Maximum internal memory supported by processor	768 GB
Memory bandwidth supported by processor (max)	51.2 GB/s
Conflict-Free processor	No
Processor special features
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Secure Key Technology version	1.00
Intel Trusted Execution Technology	Yes
Intel TSX-NI version	0.00
Intel Virtualization Technology (VT-x)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Maximum number of PCI Express lanes	40
Number of QPI links	2
Thermal Monitoring Technologies	Yes
Memory types supported by processor	DDR3-SDRAM
