Trendnet TI-B541 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black1
Trendnet TI-B541 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black1 Trendnet TI-B541 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black2

Trendnet TI-B541 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Trendnet TI-B541. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE). Wall mountable
Manufacturers: Trendnet , TRENDNET INC
SKU: 7542549
Manufacturer part number: TI-B541
UPC: 0710931162592
$174.99

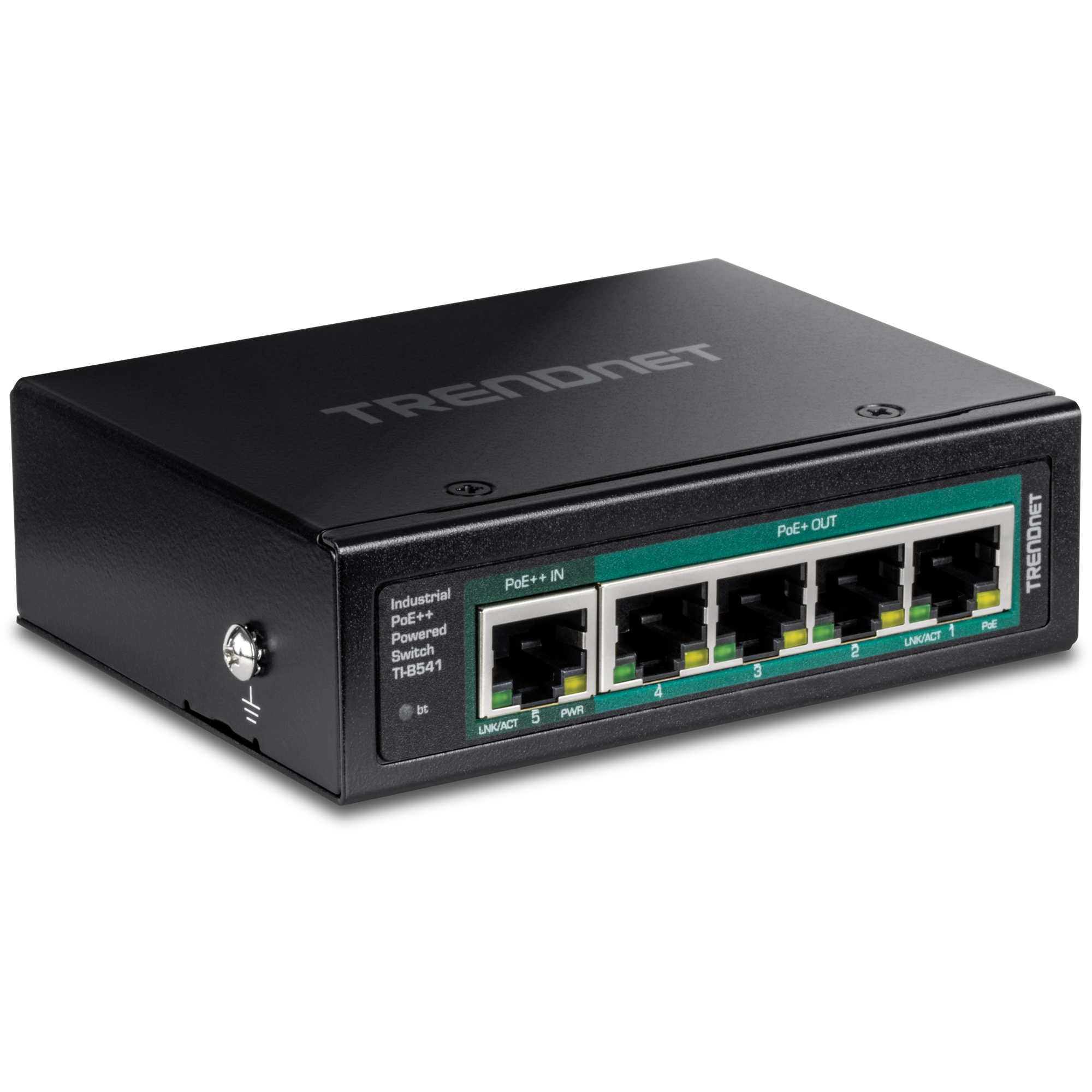

TRENDnet’s 5-Port Industrial Gigabit PoE++ Powered DIN-Rail Switch with PoE Pass-Through, model TI-B541, is powered by a PoE++ switch or injector, no AC adapter is required. The PoE-powered industrial switch features four gigabit PoE+ ports to power devices such as IP cameras, VoIP handsets, and wireless access points. The switch’s PoE++ powered feature allows it to be installed in a place where there is no power source nearby. With an operating temperature range of -40°– 75 °C (-40° – 167 °F), the hardened IP30 rated housing is suitable for extreme industrial environments.



  • 1 x Gigabit PoE++ input port
  • 4 x Gigabit PoE+ output ports
  • 65W PoE power budget with PoE++ Type 4 (90W) input power
  • 10Gbps switching capacity
  • Hardened IP30 rated metal switch
  • Includes DIN-Rail and wall mounts
  • Extreme operating temperature range of -40° - 75° C (-40° - 167° F)
  • NDAA / TAA compliant (U.S. and Canada only)
TRENDnet’s 5-Port Industrial Gigabit PoE++ Powered DIN-Rail Switch with PoE Pass-Through, model TI-B541, is powered by a PoE++ switch or injector, no AC adapter is required. The PoE-powered industrial switch features four gigabit PoE+ ports to power devices such as IP cameras, VoIP handsets, and wireless access points. The switch’s PoE++ powered feature allows it to be installed in a place where there is no power source nearby. With an operating temperature range of -40°– 75 °C (-40° – 167 °F), the hardened IP30 rated housing is suitable for extreme industrial environments.



  • 1 x Gigabit PoE++ input port
  • 4 x Gigabit PoE+ output ports
  • 65W PoE power budget with PoE++ Type 4 (90W) input power
  • 10Gbps switching capacity
  • Hardened IP30 rated metal switch
  • Includes DIN-Rail and wall mounts
  • Extreme operating temperature range of -40° - 75° C (-40° - 167° F)
  • NDAA / TAA compliant (U.S. and Canada only)
Products specifications
Attribute nameAttribute value
Width4.02"
Depth3.15"
Height1.22"
Weight5.64 oz
Housing MaterialMetal
Switch TypeUnmanaged
Power SourceDC/PoE
Switching capacity10 Gbit/s
Forwarding rate7.44 Mpps
Power over Ethernet (PoE) type supportedPoE+, PoE++ (4PPoE)
Half duplexYes
Power over Ethernet 4PPoE (PoE++) ports quantity1
Design
CertificationCE FCC LVD
DIN rail mountingYes
Technical details
Product colorBlack
Features
Full duplexYes
Wall mountableYes
International Protection (IP) codeIP30
Mean time between failures (MTBF)537083 h
Performance
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Other features
Rack mountingNo
MAC address table2000 entries
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Power over Ethernet plus (PoE+) ports quantity4
Power
Total Power over Ethernet (PoE) budget65 W
Power consumption (max)3.9 W
Network
Jumbo frames supportYes
Jumbo frames9000
10G supportNo
Operational conditions
Operating temperature (T-T)-40 - 75 °C
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
*
*
*
Products specifications
Attribute nameAttribute value
Width4.02"
Depth3.15"
Height1.22"
Weight5.64 oz
Housing MaterialMetal
Switch TypeUnmanaged
Power SourceDC/PoE
Switching capacity10 Gbit/s
Forwarding rate7.44 Mpps
Power over Ethernet (PoE) type supportedPoE+, PoE++ (4PPoE)
Half duplexYes
Power over Ethernet 4PPoE (PoE++) ports quantity1
Design
CertificationCE FCC LVD
DIN rail mountingYes
Technical details
Product colorBlack
Features
Full duplexYes
Wall mountableYes
International Protection (IP) codeIP30
Mean time between failures (MTBF)537083 h
Performance
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Other features
Rack mountingNo
MAC address table2000 entries
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Power over Ethernet plus (PoE+) ports quantity4
Power
Total Power over Ethernet (PoE) budget65 W
Power consumption (max)3.9 W
Network
Jumbo frames supportYes
Jumbo frames9000
10G supportNo
Operational conditions
Operating temperature (T-T)-40 - 75 °C
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
