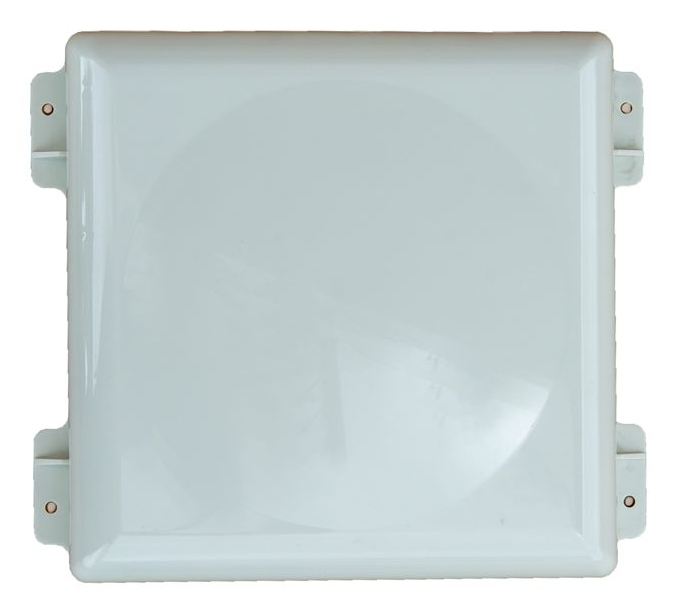

HPE S0A66A network antenna MIMO directional antenna RP-SMA 7.5 dBi

HPE S0A66A. Antenna gain level (max): 7.5 dBi, Frequency band: 2.4/5 GHz, Impedance: 50 Ω. Antenna type: MIMO directional antenna, Antenna connector type: RP-SMA, Voltage Standing Wave Ratio (VSWR): 2:1. Width: 7.48" (190 mm), Depth: 7.48" (190 mm), Height: 1.57" (40 mm)

Manufacturers: Hewlett Packard Enterprise , HPE

SKU: 7451658

Manufacturer part number: S0A66A

UPC: 0190017618654

MSRP: $545.00

Price: $512.60

Qty:

AP-ANT-28A is a dual-polarized antenna with nominal 60° H x 60° V beamwidths. This antenna is well suited for 2.4-GHz and 5-GHz sector coverage for Wi-Fi access.

Overview
Specifications
Contact Us

AP-ANT-28A is a dual-polarized antenna with nominal 60° H x 60° V beamwidths. This antenna is well suited for 2.4-GHz and 5-GHz sector coverage for Wi-Fi access.

Products specifications

Attribute name	Attribute value
Width	7.48"
Depth	7.48"
Height	1.57"
Weight	24.7 oz
Housing Material	Aluminum, Plastic
Antenna Type	MIMO directional antenna
Voltage Standing Wave Ratio (VSWR)	2:1
Horizontal beam width (2.4 GHz)	70 °
Vertical beam width (2.4 GHz)	70 °
Horizontal beam width (5 GHz)	56 °
Vertical beam width (5 GHz)	56 °
Features
Impedance	50 Ω
Operational conditions
Operating temperature (T-T)	-45 - 65 °C
Wireless LAN features
Frequency band	2.4/5 GHz
Antenna
Antenna gain level (max)	7.5 dBi
Antenna connector type	RP-SMA
