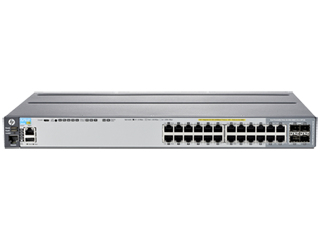

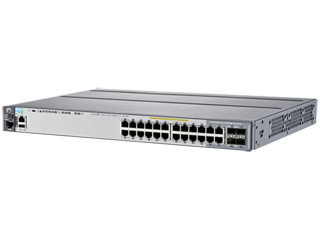

Aruba, a Hewlett Packard Enterprise company Aruba 2920 24G POE+ Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Gray1
Aruba, a Hewlett Packard Enterprise company Aruba 2920 24G POE+ Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Gray1 HPE Aruba Networking Aruba 2920 24G POE+ Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Gray1 Aruba, a Hewlett Packard Enterprise company Aruba 2920 24G POE+ Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Gray2 HPE Aruba Networking Aruba 2920 24G POE+ Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Gray2

HPE Aruba Networking Aruba 2920 24G POE+ Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Gray

HPE Aruba Networking Aruba 2920 24G POE+. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Switching optical modules type: 40 Gigabit Ethernet. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Manufacturers: Aruba, a Hewlett Packard Enterprise company , HPE
SKU: 6686128
Manufacturer part number: J9727A
UPC: 0886112322229
$2,836.00


























Products specifications
Attribute nameAttribute value
Width17.4"
Depth13.2"
Weight12 lbs
Switch TypeManaged
Heat dissipation358 BTU/h
Switching capacity128 Gbit/s
Switching optical modules type40 Gigabit Ethernet
DHCP featuresDHCP server
Latency (10 Gbps)3.3 µs
Latency (10-100 Mbps)9 µs
Latency (1 Gbps)3.3 µs
Multicast MAC address table95.2 entries
Virtual stacking (units)4
Height1.73"
StackableYes
Built-in processorYes
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Link aggregationYes
Access Control List (ACL)Yes
SSH/SSL supportYes
IGMP snoopingYes
IP routingYes
Design
Form factor1U
Technical details
Product colorGray
Flow control supportYes
Features
Memory typeSDRAM
Internal memory512 MB
Full duplexYes
Performance
Processor frequency625 MHz
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Auto MDI/MDI-XYes
Other features
MAC address table16000 entries
Rack mountingYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Power
Power consumption (typical)475 W
AC input frequency50 - 60 Hz
Total Power over Ethernet (PoE) budget370 W
AC input voltage100 - 240 V
Network
Multicast supportYes
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Jumbo frames supportYes
10G supportYes
Quality of Service (QoS) supportYes
Auto-sensingYes
Spanning tree protocolYes
Operational conditions
Operating relative humidity (H-H)15 - 95 %
Storage relative humidity (H-H)15 - 95 %
Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-40 - 70 °C
Data transmission
Packet buffer memory11.25 MB
Memory
Flash memory1024 MB
Management features
Switch layerL3
Web-based managementYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
*
*
*
Products specifications
Attribute nameAttribute value
Width17.4"
Depth13.2"
Weight12 lbs
Switch TypeManaged
Heat dissipation358 BTU/h
Switching capacity128 Gbit/s
Switching optical modules type40 Gigabit Ethernet
DHCP featuresDHCP server
Latency (10 Gbps)3.3 µs
Latency (10-100 Mbps)9 µs
Latency (1 Gbps)3.3 µs
Multicast MAC address table95.2 entries
Virtual stacking (units)4
Height1.73"
StackableYes
Built-in processorYes
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Link aggregationYes
Access Control List (ACL)Yes
SSH/SSL supportYes
IGMP snoopingYes
IP routingYes
Design
Form factor1U
Technical details
Product colorGray
Flow control supportYes
Features
Memory typeSDRAM
Internal memory512 MB
Full duplexYes
Performance
Processor frequency625 MHz
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Auto MDI/MDI-XYes
Other features
MAC address table16000 entries
Rack mountingYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Power
Power consumption (typical)475 W
AC input frequency50 - 60 Hz
Total Power over Ethernet (PoE) budget370 W
AC input voltage100 - 240 V
Network
Multicast supportYes
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Jumbo frames supportYes
10G supportYes
Quality of Service (QoS) supportYes
Auto-sensingYes
Spanning tree protocolYes
Operational conditions
Operating relative humidity (H-H)15 - 95 %
Storage relative humidity (H-H)15 - 95 %
Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-40 - 70 °C
Data transmission
Packet buffer memory11.25 MB
Memory
Flash memory1024 MB
Management features
Switch layerL3
Web-based managementYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
