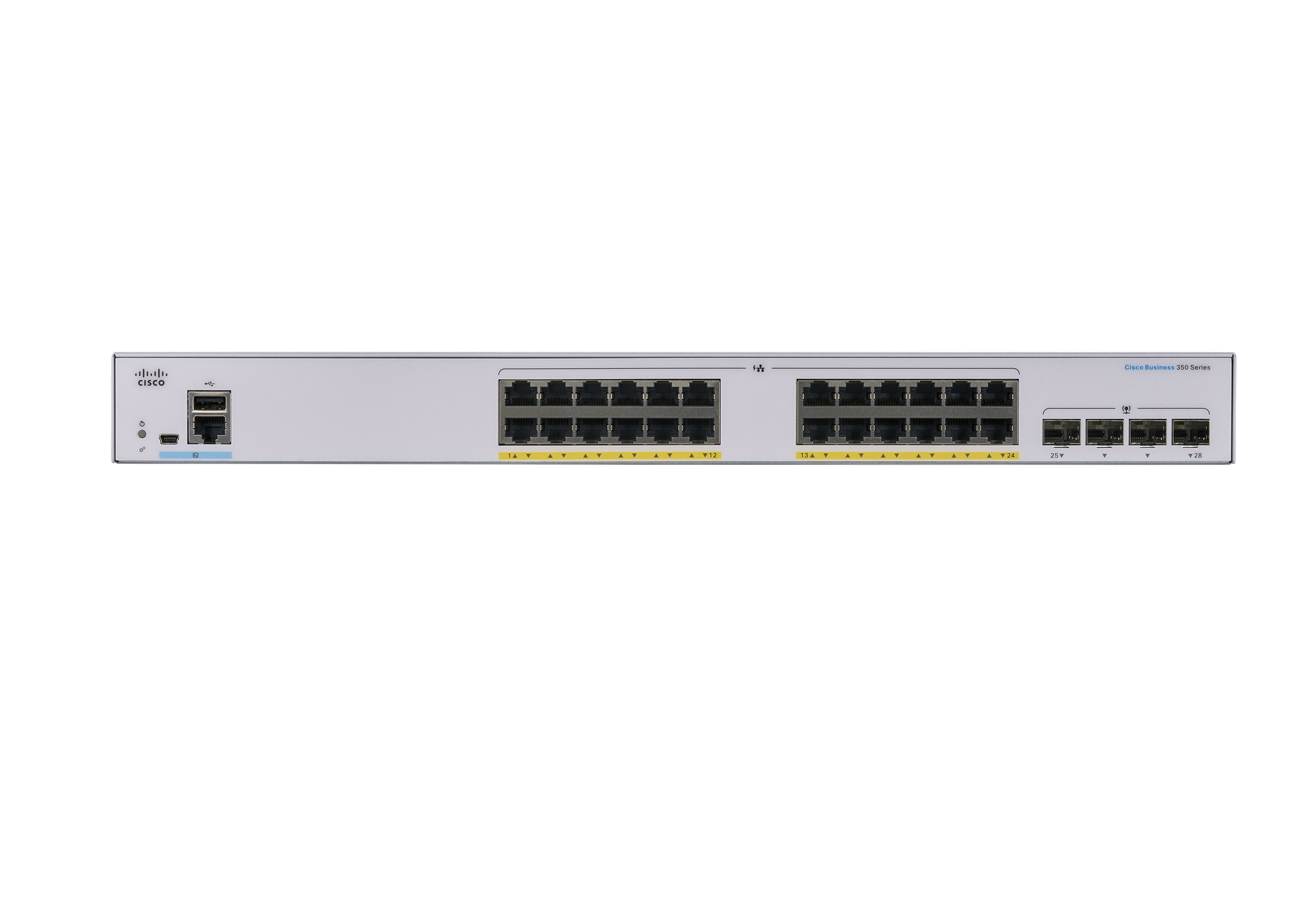

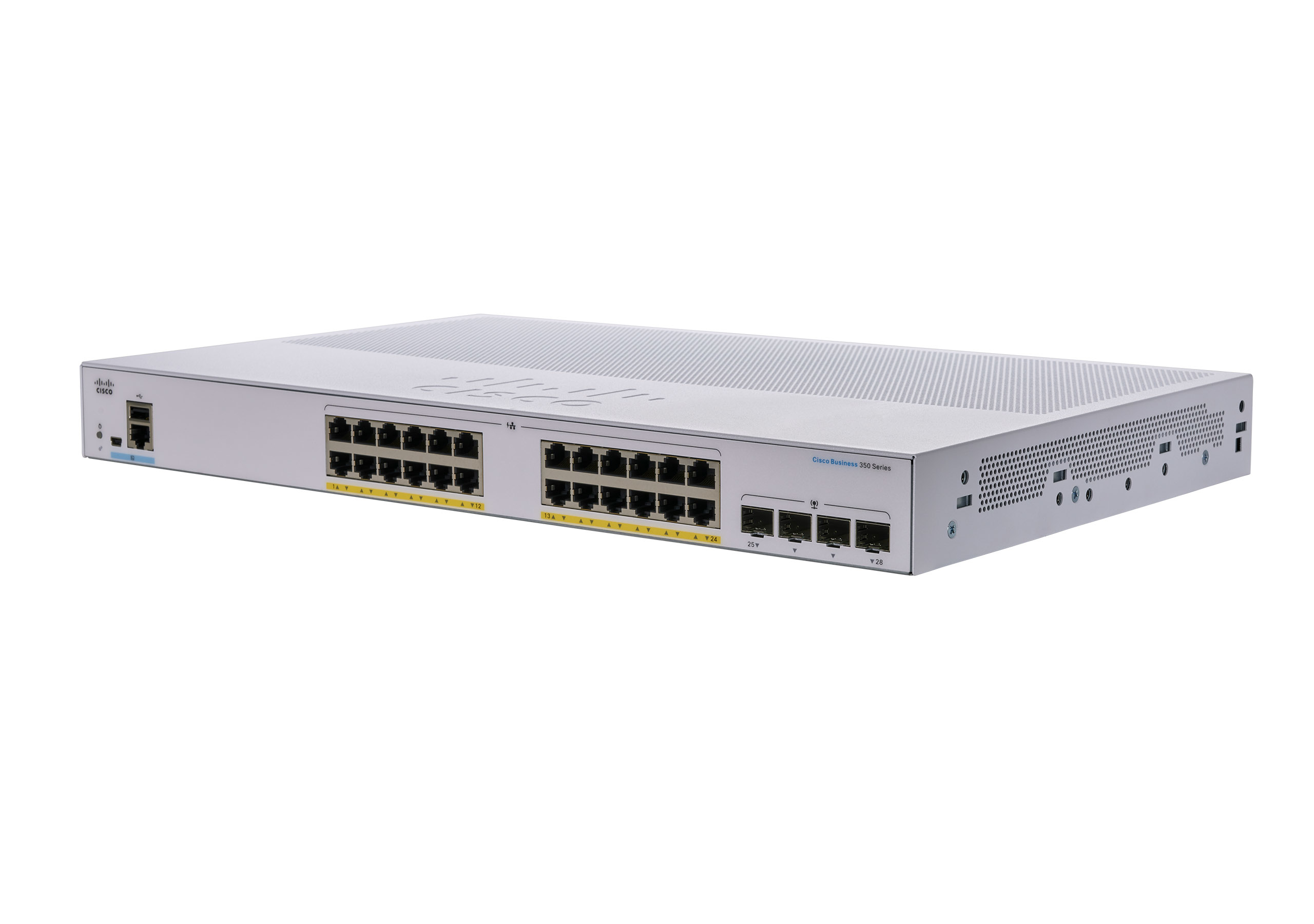

The Cisco Business CBS350-24P-4G switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, intuitive web dashboard, advanced networking features, and PoE+ support.
Products specifications
| Attribute name |
Attribute value |
|
Country of Origin
|
China |
|
Width
|
11.8" |
|
Depth
|
17.5" |
|
Height
|
1.73" |
|
Weight
|
8.07 lbs |
|
Switch Type
|
Managed |
|
Internal memory
|
512 MB |
|
Password protection
|
Yes |
|
SFP module slots quantity
|
4 |
|
Built-in processor
|
Yes |
|
MAC address filtering
|
Yes |
|
Power supply included
|
Yes |
|
Number of VLANs
|
4094 |
|
Harmonized System (HS) code
|
85176990 |
|
Static route
|
Yes |
|
Market segment
|
Business |
|
Combo SFP ports quantity
|
4 |
|
Port mirroring
|
Yes |
|
Broadcast storm control
|
Yes |
|
DHCP features
|
DHCP relay, DHCP server, DHCPv6 client |
|
Link aggregation
|
Yes |
|
Access Control List (ACL)
|
Yes |
|
SSH/SSL support
|
Yes |
|
IGMP snooping
|
Yes |
|
MIB support
|
Y |
|
GARP VLAN Registration Protocol (GVRP)
|
Yes |
|
ARP inspection
|
Yes |
|
Configuring Location Settings (CLI)
|
Yes |
|
IPv4 & IPv6 features
|
IPv6 First Hop Security (FHS) |
|
Authentication
|
Guest VLAN, Web-based authentication |
|
Head-of-line (HOL) blocking
|
Yes |
|
Access Control List (ACL) rules
|
1024 |
|
IP Source Guard (IPSG)
|
Yes |
|
Cloud-managed
|
Yes |
|
Product color
|
Silver |
|
Flow control support
|
Yes |
|
LED indicators
|
Yes |
|
Package width
|
16.9" |
|
Package depth
|
22.6" |
|
Package height
|
4.17" |
|
Package weight
|
12 lbs |
|
Quantity per shipping (inner) case
|
1 pc(s) |
|
Quantity per master (outer) case
|
1 pc(s) |
|
Quantity per pack
|
1 pc(s) |
|
Networking standards
|
IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3z |
|
Auto MDI/MDI-X
|
Yes |
|
Reset button
|
Yes |
|
Processor frequency
|
800 MHz |
|
Firmware upgradeable
|
Yes |
|
Rack mounting
|
Yes |
|
MAC address table
|
16000 entries |
|
USB 2.0 ports quantity
|
1 |
|
Basic switching RJ-45 Ethernet ports quantity
|
24 |
|
Basic switching RJ-45 Ethernet ports type
|
Gigabit Ethernet (10/100/1000) |
|
Power over Ethernet (PoE) ports quantity
|
24 |
|
AC input frequency
|
50 Hz |
|
AC input voltage
|
100 - 240 V |
|
Power plug type
|
Type C |
|
Total Power over Ethernet (PoE) budget
|
195 W |
|
Power supply location
|
Internal |
|
Ethernet LAN data rates
|
10,100,1000 Mbit/s |
|
Multicast support
|
Yes |
|
Jumbo frames support
|
Yes |
|
Jumbo frames
|
9000 |
|
10G support
|
Yes |
|
Quality of Service (QoS) support
|
Yes |
|
VLAN support
|
Yes |
|
Spanning tree protocol
|
Yes |
|
Operating temperature (T-T)
|
-5 - 50 °C |
|
Storage temperature (T-T)
|
-25 - 70 °C |
|
Operating relative humidity (H-H)
|
10 - 90 % |
|
Storage relative humidity (H-H)
|
10 - 90 % |
|
Flash memory
|
256 MB |
|
Web-based management
|
Yes |
|
Switch layer
|
L2/L3 |
|
Security algorithms
|
802.1x RADIUS |
|
Management protocols
|
SNMP |
|
Power over Ethernet (PoE)
|
Yes |
