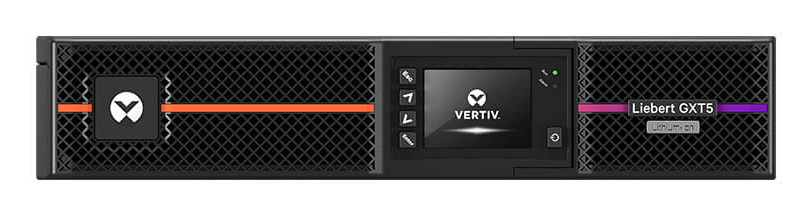

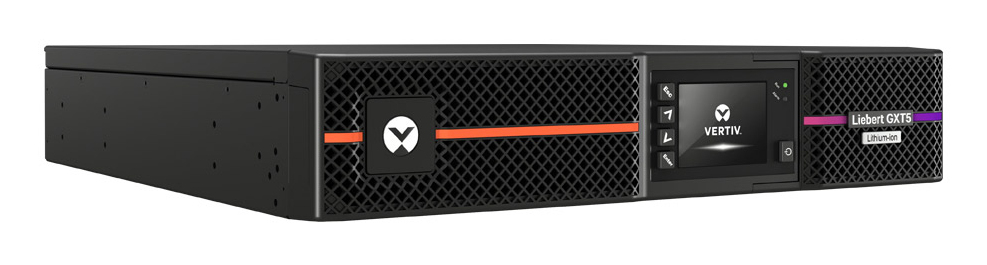

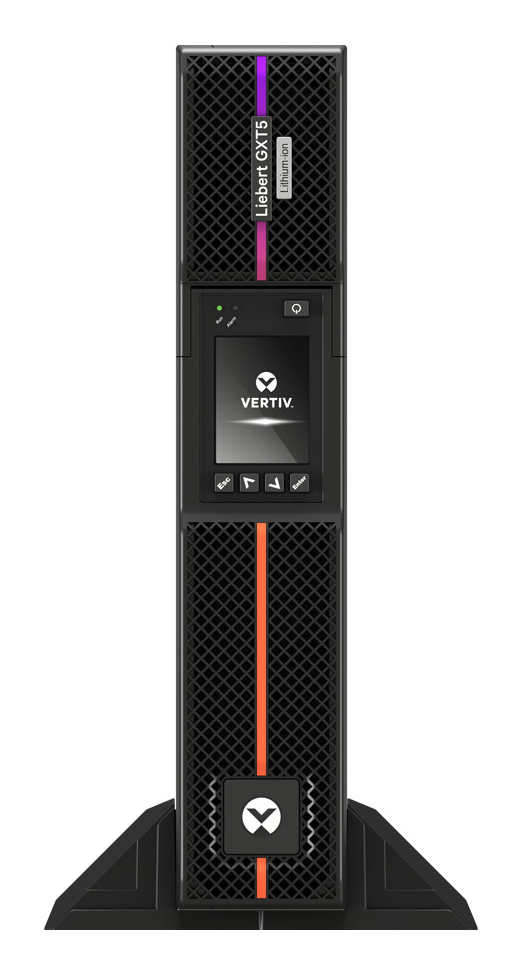

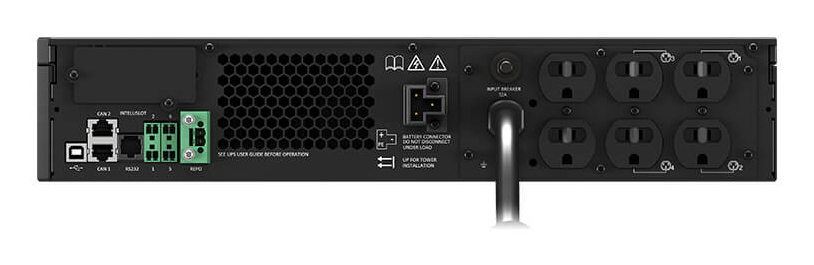

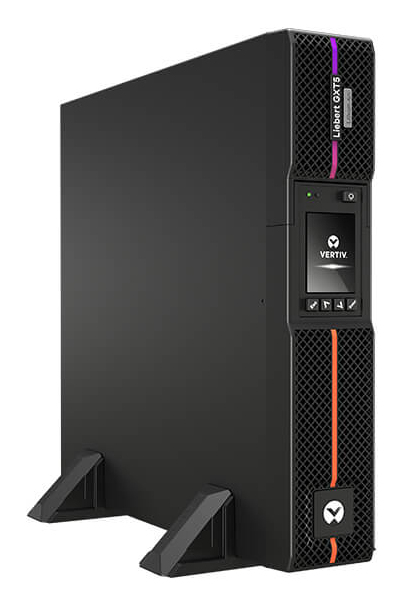

Vertiv Liebert GXT5LI-2000LVRT2UXLN uninterruptible power supply (UPS) Double-conversion (Online) 2 kVA 1800 W 7 AC outlet(s)

Vertiv Liebert GXT5LI-2000LVRT2UXLN. UPS topology: Double-conversion (Online), Output power capacity: 2 kVA, Output power: 1800 W. AC outlet types: NEMA 5–15R, NEMA 5–20R, NEMA L5-20R, Power plug: NEMA L5-20P, AC outlets quantity: 7 AC outlet(s). Battery technology: Lithium Iron Phosphate (LiFePO4), Typical backup time at full load: 10.5 min, Typical backup time at half load: 22.5 min. Form factor: Rackmount/Tower, Product color: Black, Rack capacity: 2U. Compliance certificates: REACH, RoHS, WEEE
Manufacturer: Vertiv
SKU: 7471554
Manufacturer part number: GXT5LI-2000LVRT2UXLN
UPC: 0767041037999
MSRP: $5,072.00
$4,052.61
The Vertiv™ Liebert® GXT5 Lithium-Ion UPS 1000VA/1000W/120V protects critical IT applications against outages and various power disturbances. This online double conversion UPS offers highest level of power conditioning and battery backup in server rooms, network closets, and other edge or distributed IT locations.



  • 1000VA – 3000VA Rack/Tower optimized form factors
  • Online double conversion topology with pure sinewave output and zero transfer time
  • Lithium-Ion battery with an 8 to 10-Year design life
  • 50% lower Total Cost of Ownership (TCO)
  • Intellislot™ network management card options
  • Free Power Assist™, Power Insight™ software
The Vertiv™ Liebert® GXT5 Lithium-Ion UPS 1000VA/1000W/120V protects critical IT applications against outages and various power disturbances. This online double conversion UPS offers highest level of power conditioning and battery backup in server rooms, network closets, and other edge or distributed IT locations.



  • 1000VA – 3000VA Rack/Tower optimized form factors
  • Online double conversion topology with pure sinewave output and zero transfer time
  • Lithium-Ion battery with an 8 to 10-Year design life
  • 50% lower Total Cost of Ownership (TCO)
  • Intellislot™ network management card options
  • Free Power Assist™, Power Insight™ software
Products specifications
Attribute nameAttribute value
Width16.9"
Depth18.7"
Height3.35"
Weight39.7 lbs
Response Time0 ms
Battery Recharge Time2 h
Input Frequency40/70 Hz
Cable Length118.1"
Control typeButtons
UPS topologyDouble-conversion (Online)
Serial interfaceYes
Output frequency40/70 Hz
USB port typeUSB Type-B
Compliance certificatesREACH, RoHS, WEEE
Design
Form factorRackmount/Tower
Technical details
Product colorBlack
Serial interface typeRS-232
Features
Rack capacity2U
LED indicatorsYes
Output power1800 W
Noise level48 dB
Input operation voltage (min)102 V
Input operation voltage (max)150 V
Output operation voltage (min)100 V
Output operation voltage (max)125 V
WaveformPure sine
Packaging data
Package width22.4"
Package depth23.5"
Package height9.53"
Package weight52.9 lbs
Ports & interfaces
AC outlets quantity7 AC outlet(s)
AC outlet typesNEMA 5–15R, NEMA 5–20R, NEMA L5-20R
Power plugNEMA L5-20P
USB portYes
Power
Output power capacity2 kVA
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 95 %
Operating altitude0 - 118110.2"
Battery
Battery technologyLithium Iron Phosphate (LiFePO4)
Typical backup time at full load10.5 min
Typical backup time at half load22.5 min
*
*
*
