Vertiv GXT5-2000LVRT2UXLTAA uninterruptible power supply (UPS) Double-conversion (Online) 2 kVA 1800 W 6 AC outlet(s)

Vertiv GXT5-2000LVRT2UXLTAA. UPS topology: Double-conversion (Online), Output power capacity: 2 kVA, Output power: 1800 W. AC outlet types: NEMA L5-20R, Power plug: NEMA L5-20P, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 4 min, Typical backup time at half load: 12.3 min. Form factor: Rackmount/Tower, Product color: Black. Compliance certificates: Trade Agreements Act (TAA), REACH, RoHS

Manufacturer: Vertiv

SKU: 6688109

Manufacturer part number: GXT5-2000LVRT2UXLTAA

UPC: 0767041038651

MSRP: $3,315.00

Price: $2,648.73

Qty:

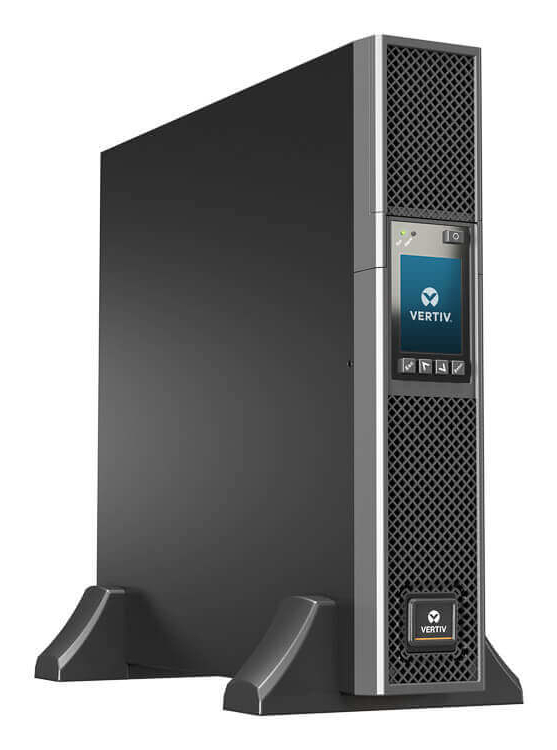

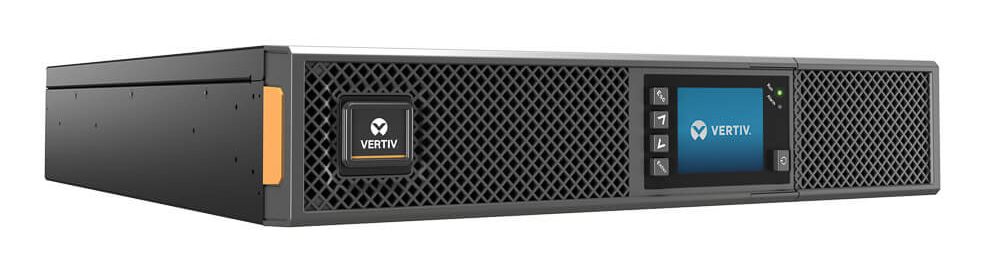

The Vertiv™ Liebert® GXT5 TAA Compliant UPS is an online double conversion UPS solution which offers premium power outage protection and continuous power conditioning in a compact and flexible rack/tower design. This single-phase UPS family provides superior protection and remote management capability, making it ideally suited to protect critical infrastructure in both centralized and edge network applications. Additionally, the Liebert GXT5 TAA UPS offers a scalable battery runtime solution through matching external battery cabinets.

Enhanced local and remote management capabilities enable users to understand the condition of the critical infrastructure space and take action when necessary
High power factor operation up to unity provides the highest available power (watt) for use by connected IT equipment, allowing for more connected devices
Integrated serial connection for advanced console server integration or direct terminal control of the UPS
Energy Star® 2.0 certification with efficiency in online (95%) and Active ECO (98%) modes
SNMP network communications with optional Liebert® RDU101 NIC and free Vertiv™ Power Insight
Gravity-sensing, color LCD for easy configuration and system diagnosis
Scalable power with auto-detection of external battery cabinets

Overview
Specifications
Contact Us

Enhanced local and remote management capabilities enable users to understand the condition of the critical infrastructure space and take action when necessary
High power factor operation up to unity provides the highest available power (watt) for use by connected IT equipment, allowing for more connected devices
Integrated serial connection for advanced console server integration or direct terminal control of the UPS
Energy Star® 2.0 certification with efficiency in online (95%) and Active ECO (98%) modes
SNMP network communications with optional Liebert® RDU101 NIC and free Vertiv™ Power Insight
Gravity-sensing, color LCD for easy configuration and system diagnosis
Scalable power with auto-detection of external battery cabinets

Products specifications

Attribute name	Attribute value
Width	16.9"
Depth	18.5"
Height	3.35"
Weight	47.6 lbs
Input Frequency	40/70 Hz
UPS topology	Double-conversion (Online)
Serial interface	Yes
USB port type	USB Type-B
Efficiency (ECO mode)	98 %
Efficiency (On-line mode)	95 %
Compliance certificates	Trade Agreements Act (TAA), REACH, RoHS
Design
Form factor	Rackmount/Tower
Technical details
Product color	Black
Sustainability certificates	ENERGY STAR
Serial interface type	RS-485
Features
Output power	1800 W
Noise level	48 dB
Input operation voltage (min)	60 V
Input operation voltage (max)	150 V
Output operation voltage (min)	110 V
Output operation voltage (max)	125 V
Waveform	Sine
Ports & interfaces
AC outlets quantity	6 AC outlet(s)
AC outlet types	NEMA L5-20R
RS-232 ports	1
Power plug	NEMA L5-20P
USB port	Yes
Power
Output power capacity	2 kVA
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Battery
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at full load	4 min
Typical backup time at half load	12.3 min
