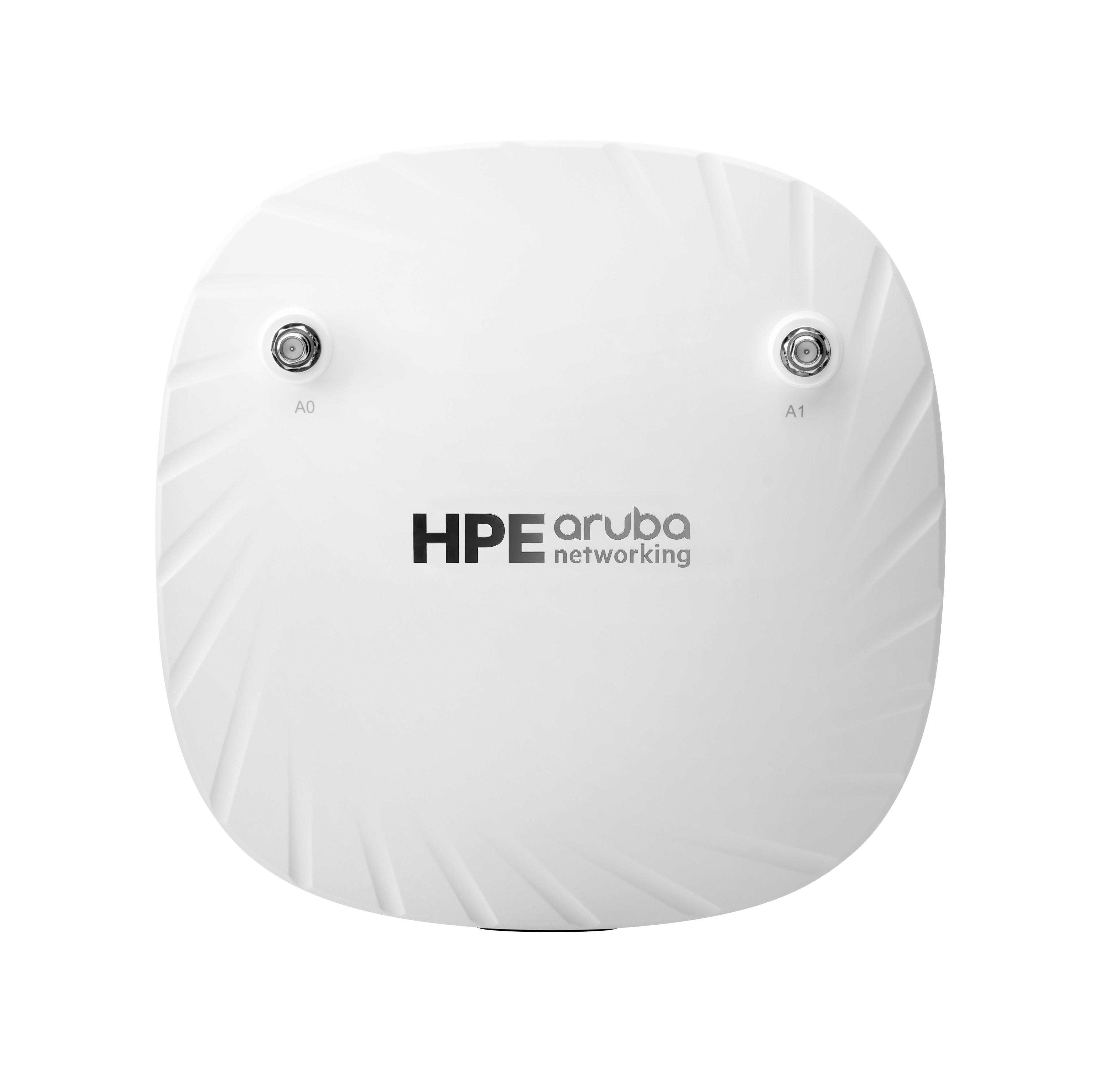

HPE Aruba Networking AP-504 (EG) Dual Radio 2x2 802.11ax External Antennas Unified Campus AP

HPE Aruba Networking AP-504 (EG) Dual Radio 2x2 802.11ax External Antennas Unified Campus AP. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1774 Mbit/s. Security algorithms: WPA3, WPA, WPA2. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product color: White
Manufacturer: HPE
SKU: 7566831
Manufacturer part number: R2H19A
UPC: 0190017357904
MSRP: $944.00
$887.87
HPE Aruba Networking 500 Series Campus Access Points deliver cost-effective Wi-Fi 6 coverage for indoor environments such as mid-sized offices, schools, and retail spaces where fewer people are on the network at the same time. With 1.49 Gbps maximum combined data rate, the 500 Series delivers reliable Wi-Fi for medium density environments and is supported by HPE Aruba Networking Central, AI-powered management that simplifies and improves IT operations across branch, remote office, campus, data center, and IoT networks with a single point of visibility and control. The 500 Series is Wi-Fi CERTIFIED™ and supports Wi-Fi 6 (802.11ax) features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected IoT devices, and WPA3 and Enhanced Open for greater password and guest security. The 500 Series includes a limited lifetime warranty.

What is new supporting point:
Available in optional eco-friendly 10-packs.
Support for OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security.
IoT-ready with built-in [1] Bluetooth 5 and Zigbee support.
Dynamic Segmentation and policy enforcement firewalls automatically enforce consistent policies across wired and wireless networks, enhancing user and device security.
Built-in technology that resolves sticky client issues and improves performance of mobile Wi-Fi clients.
Entry level Wi-Fi 6 access points provide up to 1.49 Gbps maximum combined data rate.
HPE Aruba Networking 500 Series Campus Access Points deliver cost-effective Wi-Fi 6 coverage for indoor environments such as mid-sized offices, schools, and retail spaces where fewer people are on the network at the same time. With 1.49 Gbps maximum combined data rate, the 500 Series delivers reliable Wi-Fi for medium density environments and is supported by HPE Aruba Networking Central, AI-powered management that simplifies and improves IT operations across branch, remote office, campus, data center, and IoT networks with a single point of visibility and control. The 500 Series is Wi-Fi CERTIFIED™ and supports Wi-Fi 6 (802.11ax) features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected IoT devices, and WPA3 and Enhanced Open for greater password and guest security. The 500 Series includes a limited lifetime warranty.

What is new supporting point:
Available in optional eco-friendly 10-packs.
Support for OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security.
IoT-ready with built-in [1] Bluetooth 5 and Zigbee support.
Dynamic Segmentation and policy enforcement firewalls automatically enforce consistent policies across wired and wireless networks, enhancing user and device security.
Built-in technology that resolves sticky client issues and improves performance of mobile Wi-Fi clients.
Entry level Wi-Fi 6 access points provide up to 1.49 Gbps maximum combined data rate.
Products specifications
Attribute nameAttribute value
Width6.3"
Depth6.34"
Height1.46"
Weight17.6 oz
Antenna TypeExternal
PlacementCeiling, Wall
Cable lock slotYes
Cable lock slot typeKensington
USB connector typeUSB Type-A
Maximum data transfer rate (2.4 GHz)574 Mbit/s
Maximum data transfer rate (5 GHz)1200 Mbit/s
MIMOYes
MIMO typeMulti User MIMO
Spread spectrum methodDSSS, OFDM, OFDMA
Harmonized System (HS) code85176990
Technical details
Product colorWhite
Features
Number of connectors2
2.4 GHzYes
5 GHzYes
Modulation16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Performance
Maximum data transfer rate1774 Mbit/s
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Auto MDI/MDI-XYes
Ports & interfaces
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity1
Network
Ethernet LAN data rates10,100,1000 Mbit/s
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 93 %
Storage relative humidity (H-H)5 - 93 %
Security
Security algorithmsWPA3, WPA, WPA2
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Antenna
Antenna connector typeRP-SMA
*
*
*
Products specifications
Attribute nameAttribute value
Width6.3"
Depth6.34"
Height1.46"
Weight17.6 oz
Antenna TypeExternal
PlacementCeiling, Wall
Cable lock slotYes
Cable lock slot typeKensington
USB connector typeUSB Type-A
Maximum data transfer rate (2.4 GHz)574 Mbit/s
Maximum data transfer rate (5 GHz)1200 Mbit/s
MIMOYes
MIMO typeMulti User MIMO
Spread spectrum methodDSSS, OFDM, OFDMA
Harmonized System (HS) code85176990
Technical details
Product colorWhite
Features
Number of connectors2
2.4 GHzYes
5 GHzYes
Modulation16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Performance
Maximum data transfer rate1774 Mbit/s
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Auto MDI/MDI-XYes
Ports & interfaces
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity1
Network
Ethernet LAN data rates10,100,1000 Mbit/s
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 93 %
Storage relative humidity (H-H)5 - 93 %
Security
Security algorithmsWPA3, WPA, WPA2
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Antenna
Antenna connector typeRP-SMA
