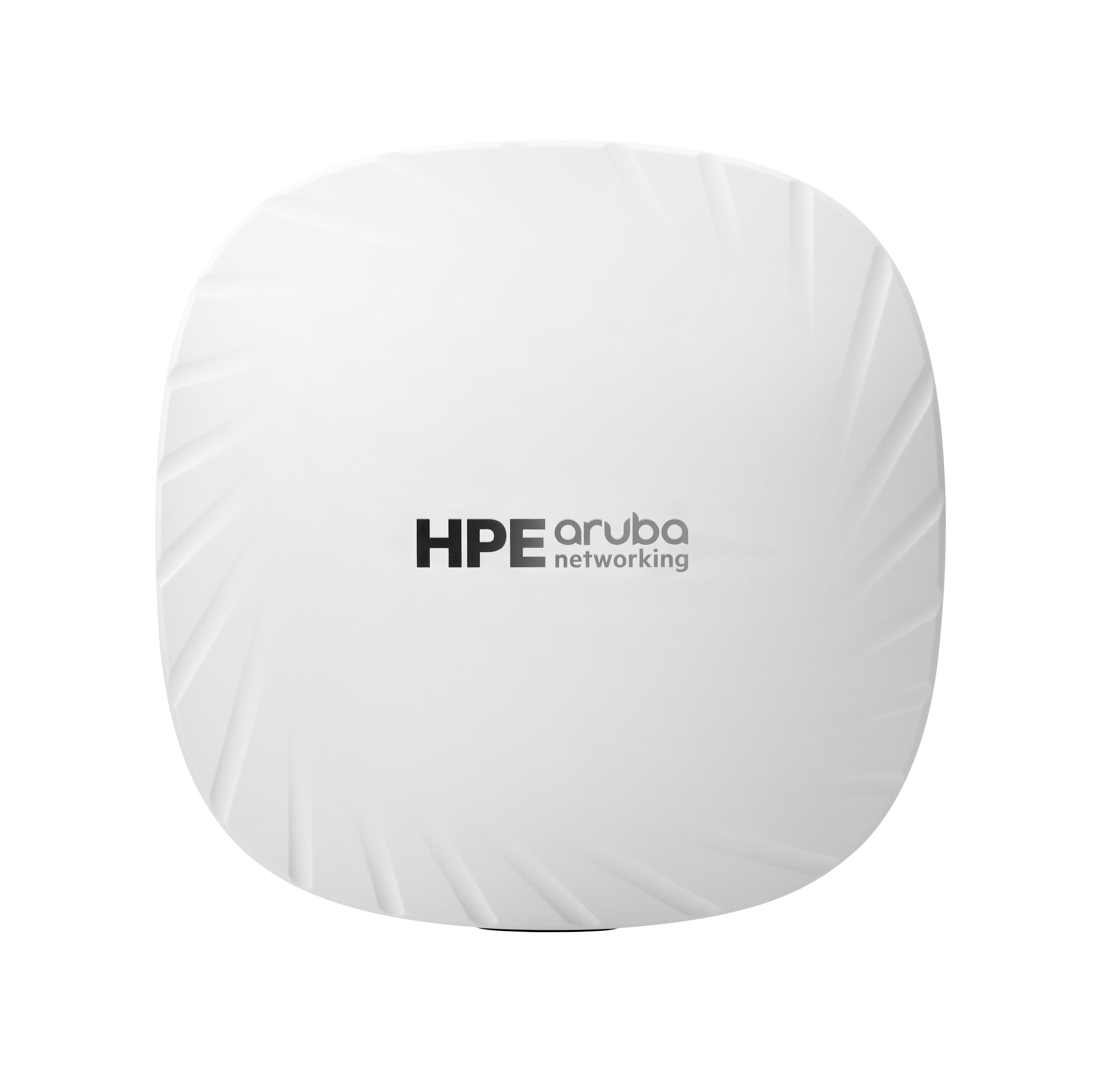

HPE Aruba Networking AP-505 (IL) Dual Radio 2x2 802.11ax Internal Antennas Unified Campus AP

HPE Aruba Networking AP-505 (IL) Dual Radio 2x2 802.11ax Internal Antennas Unified Campus AP. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1774 Mbit/s. Security algorithms: WPA3, WPA, WPA2. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product color: White. Power consumption (max): 16.5 W
Manufacturer: HPE
SKU: 7566854
Manufacturer part number: R2H26A
UPC: 0190017357973
MSRP: $944.00
$887.87
HPE Aruba Networking 500 Series Campus Access Points deliver cost-effective Wi-Fi 6 coverage for indoor environments such as mid-sized offices, schools, and retail spaces where fewer people are on the network at the same time. With 1.49 Gbps maximum combined data rate, the 500 Series delivers reliable Wi-Fi for medium density environments and is supported by HPE Aruba Networking Central, AI-powered management that simplifies and improves IT operations across branch, remote office, campus, data center, and IoT networks with a single point of visibility and control. The 500 Series is Wi-Fi CERTIFIED™ and supports Wi-Fi 6 (802.11ax) features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected IoT devices, and WPA3 and Enhanced Open for greater password and guest security. The 500 Series includes a limited lifetime warranty.

What is new supporting point:
Available in optional eco-friendly 10-packs.
Entry level Wi-Fi 6 access points provide up to 1.49 Gbps maximum combined data rate.
Support for OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security.
IoT-ready with built-in [1] Bluetooth 5 and Zigbee support.
Dynamic Segmentation and policy enforcement firewalls automatically enforce consistent policies across wired and wireless networks, enhancing user and device security.
Built-in technology that resolves sticky client issues and improves performance of mobile Wi-Fi clients.
HPE Aruba Networking 500 Series Campus Access Points deliver cost-effective Wi-Fi 6 coverage for indoor environments such as mid-sized offices, schools, and retail spaces where fewer people are on the network at the same time. With 1.49 Gbps maximum combined data rate, the 500 Series delivers reliable Wi-Fi for medium density environments and is supported by HPE Aruba Networking Central, AI-powered management that simplifies and improves IT operations across branch, remote office, campus, data center, and IoT networks with a single point of visibility and control. The 500 Series is Wi-Fi CERTIFIED™ and supports Wi-Fi 6 (802.11ax) features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected IoT devices, and WPA3 and Enhanced Open for greater password and guest security. The 500 Series includes a limited lifetime warranty.

What is new supporting point:
Available in optional eco-friendly 10-packs.
Entry level Wi-Fi 6 access points provide up to 1.49 Gbps maximum combined data rate.
Support for OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security.
IoT-ready with built-in [1] Bluetooth 5 and Zigbee support.
Dynamic Segmentation and policy enforcement firewalls automatically enforce consistent policies across wired and wireless networks, enhancing user and device security.
Built-in technology that resolves sticky client issues and improves performance of mobile Wi-Fi clients.
Products specifications
Attribute nameAttribute value
Width6.3"
Depth6.34"
Height1.46"
Weight17.6 oz
Antenna TypeInternal
PlacementCeiling, Wall
Cable lock slotYes
Cable lock slot typeKensington
Antennas quantity2
USB connector typeUSB Type-A
Maximum data transfer rate (2.4 GHz)574 Mbit/s
Maximum data transfer rate (5 GHz)1200 Mbit/s
MIMOYes
MIMO typeMulti User MIMO
Antenna featuresIntegrated antenna
Spread spectrum methodDSSS, OFDM, OFDMA
Harmonized System (HS) code85176990
Technical details
Product colorWhite
Features
2.4 GHzYes
5 GHzYes
Modulation16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Performance
Maximum data transfer rate1774 Mbit/s
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Auto MDI/MDI-XYes
Ports & interfaces
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity1
Power
Power consumption (max)16.5 W
Network
Ethernet LAN data rates10,100,1000 Mbit/s
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 93 %
Storage relative humidity (H-H)5 - 93 %
Security
Security algorithmsWPA3, WPA, WPA2
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Antenna
Antenna direction typeOmni-directional
*
*
*
Products specifications
Attribute nameAttribute value
Width6.3"
Depth6.34"
Height1.46"
Weight17.6 oz
Antenna TypeInternal
PlacementCeiling, Wall
Cable lock slotYes
Cable lock slot typeKensington
Antennas quantity2
USB connector typeUSB Type-A
Maximum data transfer rate (2.4 GHz)574 Mbit/s
Maximum data transfer rate (5 GHz)1200 Mbit/s
MIMOYes
MIMO typeMulti User MIMO
Antenna featuresIntegrated antenna
Spread spectrum methodDSSS, OFDM, OFDMA
Harmonized System (HS) code85176990
Technical details
Product colorWhite
Features
2.4 GHzYes
5 GHzYes
Modulation16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Performance
Maximum data transfer rate1774 Mbit/s
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Auto MDI/MDI-XYes
Ports & interfaces
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity1
Power
Power consumption (max)16.5 W
Network
Ethernet LAN data rates10,100,1000 Mbit/s
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 93 %
Storage relative humidity (H-H)5 - 93 %
Security
Security algorithmsWPA3, WPA, WPA2
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Antenna
Antenna direction typeOmni-directional
