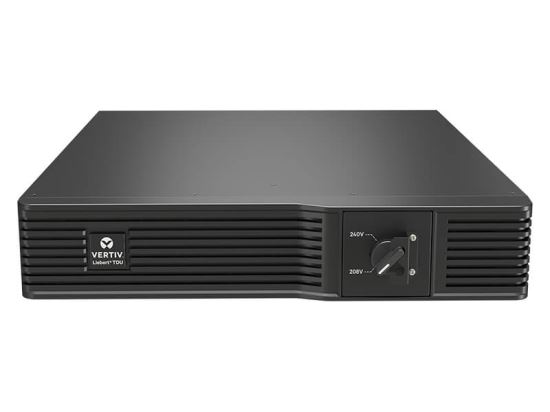

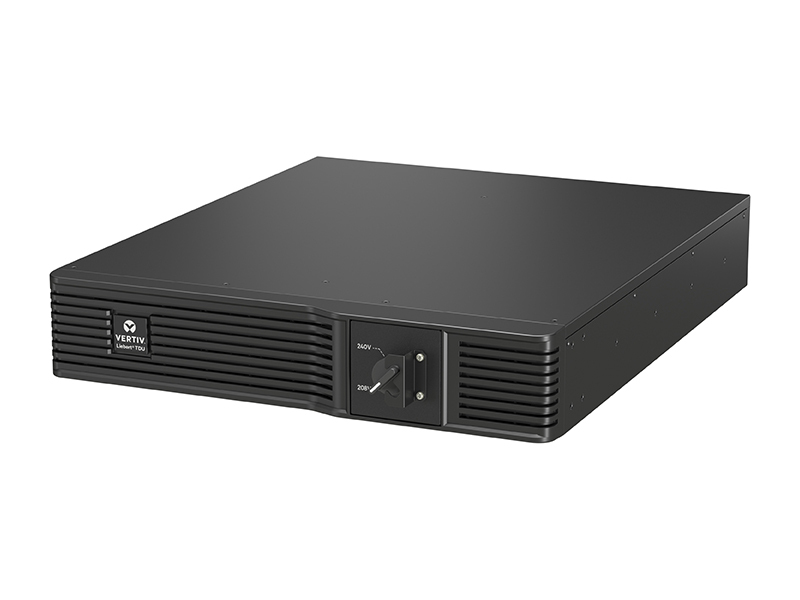

The Vertiv Liebert Transformer Distribution Unit (TDU) is a step down transformer / voltage converter that provides 120VAC output power from 208VAC or 240VAC input. It accepts 208 or 240VAC (200/220/230 VAC acceptable) input and converts it to 120VAC (L-N) output. The 3440VA/3440W TDU is designed to work with Vertiv Liebert GXT3-6000RTL630, GXT4-6000RTL630, GXT4-3000RT208, and PSI5-5000RT208 but can be used with other UPS products with 208VAC in & out, and have a compatible input power plug.
Products specifications
| Attribute name |
Attribute value |
|
Width
|
16.9" |
|
Depth
|
22.6" |
|
Height
|
3.35" |
|
Housing Material
|
Metal, Plastic |
|
Automatic Voltage Regulation (AVR)
|
Yes |
|
EMI/RFI noise filtering
|
Yes |
|
Compliance certificates
|
REACH, RoHS |
|
Form factor
|
Rackmount |
|
Product color
|
Black |
|
Rack capacity
|
2U |
|
Safety
|
UL, cUL (cULus) Listed (to UL 1778 or applicable UL Standard for transformer based PDUs) |
|
Output power
|
3440 W |
|
Noise level
|
55 dB |
|
Input operation voltage (min)
|
200 V |
|
Input operation voltage (max)
|
240 V |
|
Output operation voltage (min)
|
120 V |
|
Output operation voltage (max)
|
127 V |
|
Efficiency
|
94 % |
|

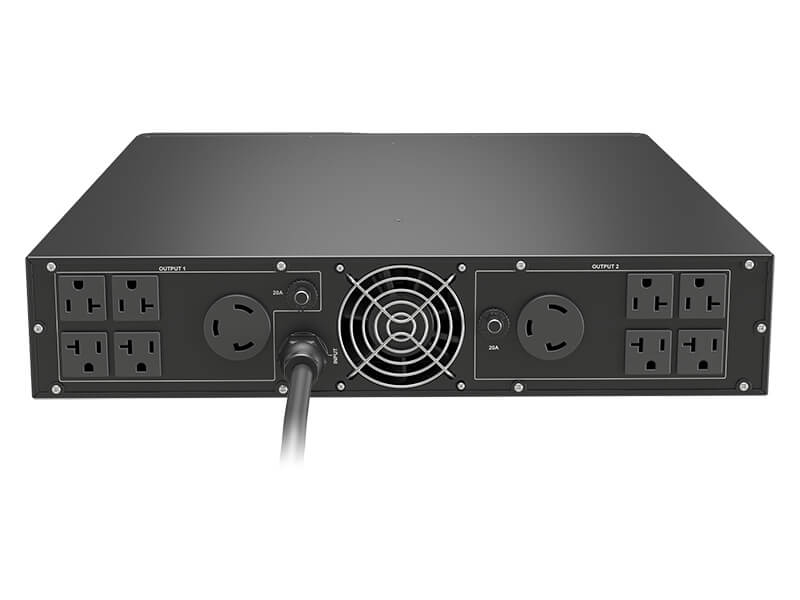

AC outlets quantity
|
10 AC outlet(s) |
|
AC outlet types
|
NEMA 5–15, NEMA 5–20R, NEMA L5-20R |
|
Output power capacity
|
3.44 kVA |
|
Operating temperature (T-T)
|
0 - 40 °C |
|
Storage temperature (T-T)
|
-15 - 50 °C |
|
Operating relative humidity (H-H)
|
0 - 95 % |
|
Operating altitude
|
0 - 118110.2" |
