A MULTI-PURPOSE DOCK
Logi Dock Flex is a managed docking station that enables easy and personalized desk booking for employees and simple device management for IT.
DESK AVAILABILITY AT A GLANCE
Employees never have to guess which desk is free, occupied, or in between. The 8” screen clearly indicates desk status at a glance.
BOOK SHARED DESKS WITH EASE
Tap to book and claim the desk directly at the desk, whether pre-booked or adhoc.
MANAGE SPACES AND DEVICES WITH EASE
Ensure that desks are fully operational at all times from any location, using Logitech Sync.
LOGITECH DESK BOOKING
Enable employees to easily find and reserve desks, choose desks near coworkers, and notify colleagues when they’re coming to the office.
MICROSOFT TEAMS
Reserve a shared desk in advance through Teams, Outlook, or right from Logi Dock Flex for adhoc bookings.
ZOOM WORKSPACE RESERVATION
Logi Dock Flex works as a scheduling display to allow for easy check-in and adhoc or advanced booking of the shared desk.
A Secure and Reliable Connection

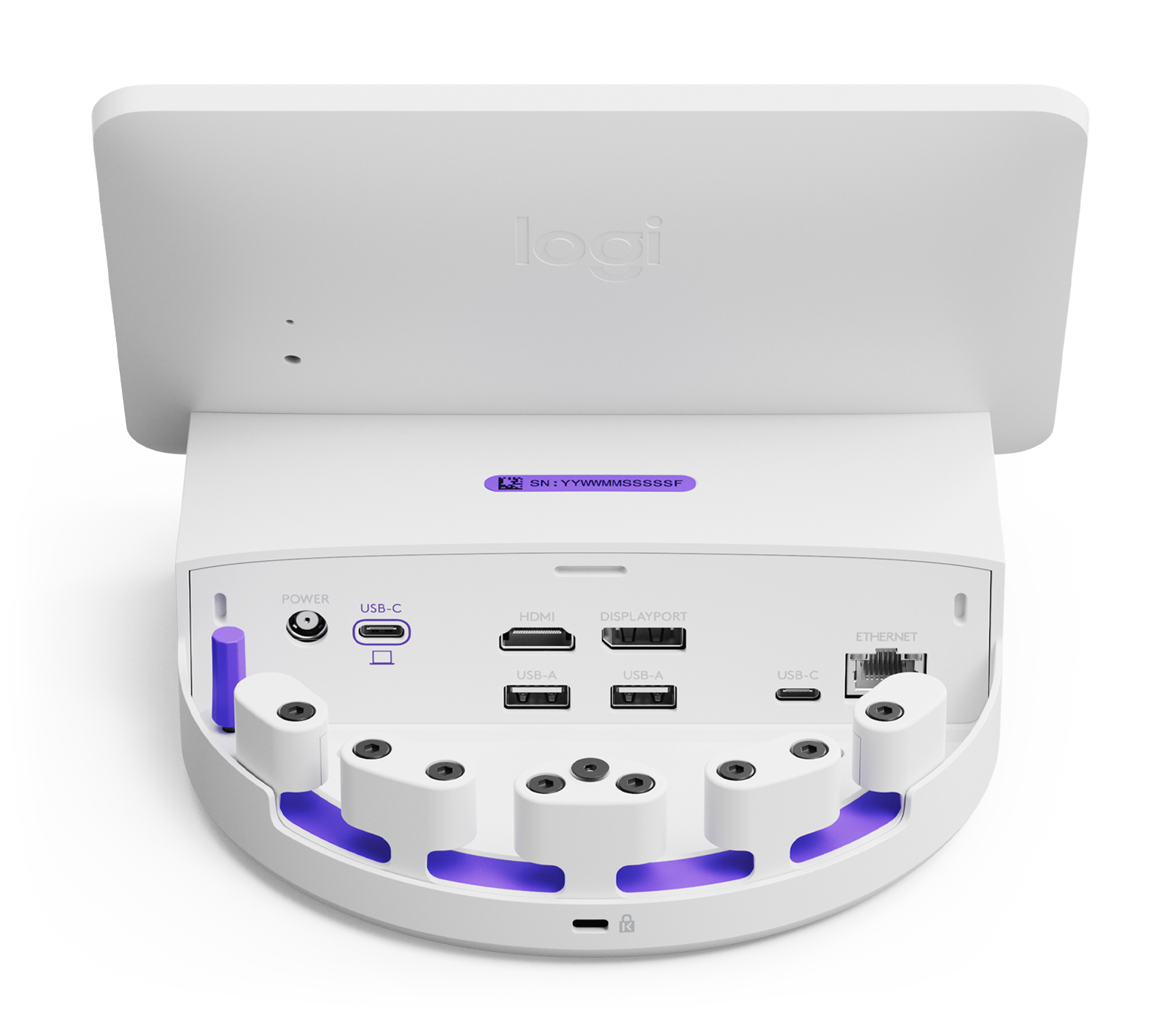

Attach up to two monitors with HDMI and DisplayPort. Attach peripherals with three IT-managed USB ports and Ethernet for security. There are also three front-facing USB ports for users.
Products specifications
Attribute name | Attribute value |
---|
Width | 7.91" |
Depth | 6.97" |
Height | 5.55" |
Weight | 2.2 lbs |
Housing Color | White |
Viewing Angle | 85 ° |
Bluetooth version | 5.0 |
Cable lock slot | Yes |
Cable lock slot type | Kensington |
Bluetooth | Yes |
Built-in camera | No |
Built-in microphone | No |
Display brightness | 300 cd/m² |
Ambient light sensor | Yes |
HDMI version | 2.0 |
Display technology | IPS |
Touchscreen technology | Capacitive |
DisplayPorts quantity | 1 |
DisplayPort version | 1.4 |
Number of simultaneous touchpoints | 5 |
USB 2.0 Type-A ports quantity | 3 |
USB Type-C ports quantity | 4 |
Oleophobic coating | Yes |
Position angle | 60 ° |
Fingerprint resistant | Yes |
Built-in speaker(s) | No |
RJ-45 ports quantity | 1 |
Display resolution | 1280 x 800 pixels |
Cables included | USB Type-C, AC |
Ethernet LAN | Yes |
LED backlight | Yes |
HDMI ports quantity | 1 |
USB port | Yes |
Power source type | DC |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Wi-Fi | Yes |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -40 - 75 °C |
Operating relative humidity (H-H) | 10 - 90 % |
Storage relative humidity (H-H) | 0 - 95 % |
Display diagonal | 8" |
Security algorithms | 128-bit AES |
