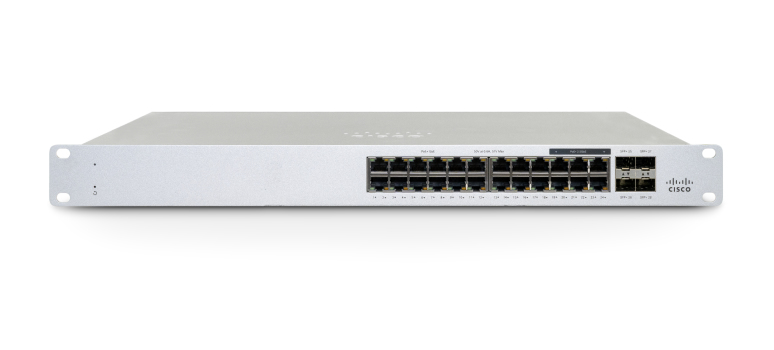

Cisco Meraki MS130 switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS130 series features a variety of options
designed to meet the diverse needs of branch and campus deployments.
With 10 different models, capable of providing up to 740W of power over a variety of port densities, including SFP+ capable uplinks, the MS130 line is fully ready
to support future wireless infrastructure deployments across a variety of different environments.
Products specifications
| Attribute name |
Attribute value |
|
Width
|
17.3" |
|
Depth
|
9.84" |
|
Height
|
1.34" |
|
Weight
|
7.19 lbs |
|
Switch Type
|
Managed |
|
Power Source
|
AC |
|
SFP module slots quantity
|
4 |
|
Switching capacity
|
56 Gbit/s |
|
Power supply included
|
Yes |
|
Port mirroring
|
Yes |
|
DHCP features
|
DHCP snooping |
|
Link aggregation
|
Yes |
|
IGMP snooping
|
Yes |
|
IPv4 & IPv6 features
|
IPv4/IPv6 access-control list (ACL) |
|
Authentication
|
MAC-based authentication |
|
Fanless
|
Yes |
|
Authentication type
|
IEEE 802.1x, RADIUS |
|
Multicast features
|
Multicast traffic suppression |
|
Number of management ports
|
1 pc(s) |
|
Form factor
|
1U |
|
Product color
|
White |
|
LED indicators
|
Yes |
|
Input current
|
0.85 A |
|
Mean time between failures (MTBF)
|
789842 h |
|
Networking standards
|
IEEE 802.1Q, IEEE 802.3bt |
|
Firmware upgradeable
|
Yes |
|
Rack mounting
|
Yes |
|
Basic switching RJ-45 Ethernet ports quantity
|
24 |
|
Basic switching RJ-45 Ethernet ports type
|
Gigabit Ethernet (10/100/1000) |
|
AC input frequency
|
50/60 Hz |
|
AC input voltage
|
100 - 240 V |
|
Multicast support
|
Yes |
|
10G support
|
Yes |
|
Quality of Service (QoS) support
|
Yes |
|
Spanning tree protocol
|
Yes |
|
Virtual LAN features
|
Voice VLAN |
|
Operating temperature (T-T)
|
0 - 45 °C |
|
Storage temperature (T-T)
|
-20 - 70 °C |
|
Operating relative humidity (H-H)
|
5 - 95 % |
|
Switch layer
|
L2 |
|
Security algorithms
|
SNMP |
|
Power over Ethernet (PoE)
|
No |
