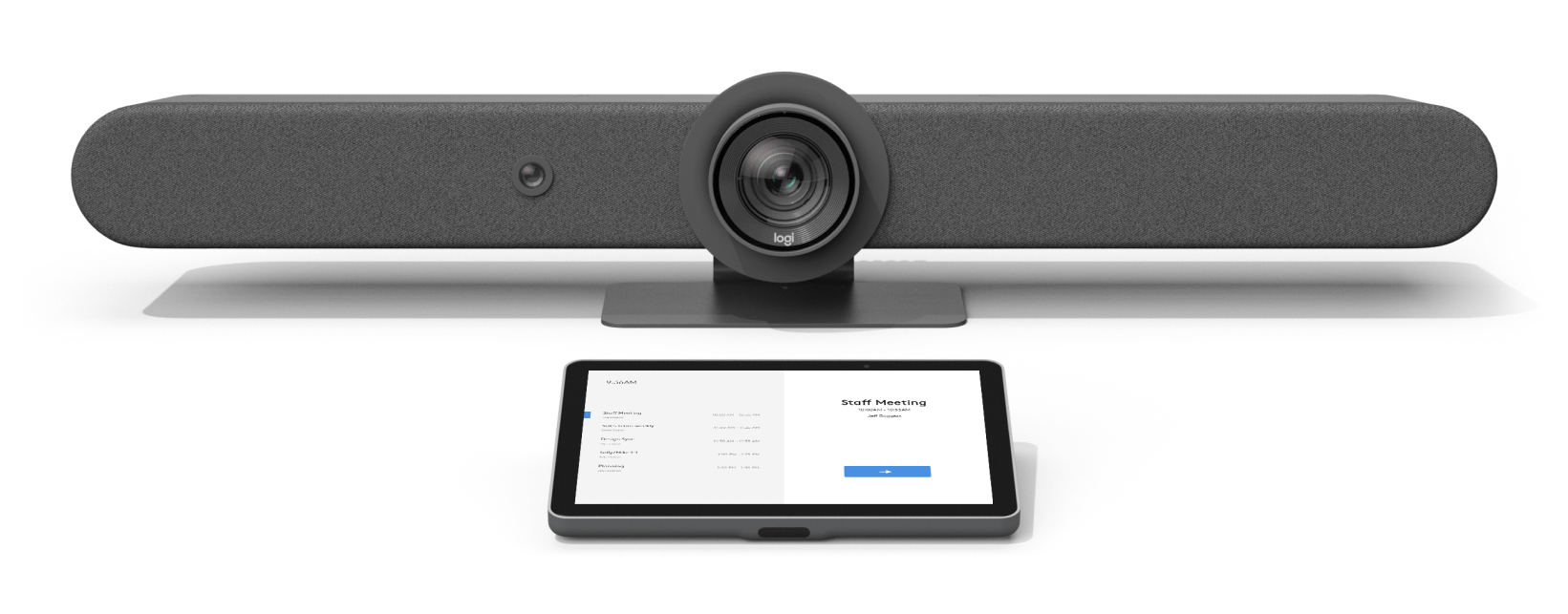

Logitech Rally Bar + Tap IP video conferencing system Ethernet LAN1

Logitech Rally Bar + Tap IP video conferencing system Ethernet LAN

Logitech Rally Bar + Tap IP. HD type: 4K Ultra HD, Supported video modes: 576p, 720p, 900p, 1440p, 2160p, Maximum frame rate: 30 fps. Optical zoom: 5x, Digital zoom: 3x. Ethernet LAN, Wi-Fi. Display: IPS, Display diagonal: 10.1", Display resolution: 1280 x 800 pixels. Product color: Graphite

Manufacturer: Logitech

SKU: 6590101

Manufacturer part number: 991-000419

UPC: 0097855173614

Price: $4,999.00

Qty:

Full solution featuring an all-in-one video bar and touch controller with PoE connectivity.

Overview
Specifications
Contact Us

Full solution featuring an all-in-one video bar and touch controller with PoE connectivity.

Products specifications

Attribute name	Attribute value
Width	35.8"
Depth	6.3"
Height	6.46"
Weight	15.6 lbs
Battery Capacity	220 mAh
Display	IPS
Current	4.74 A
Touchscreen	Yes
Digital Zoom	3 x
RMS rated power	8 W
Heat dissipation	64 BTU/h
Cable lock slot	Yes
Cable lock slot type	Kensington
Handheld remote control	Yes
HD type	4K Ultra HD
Display brightness	400 cd/m²
Touchscreen type	Capacitive
Maximum video resolution	3840 x 2160 pixels
USB connector type	USB Type-A, USB Type-C
Supported video modes	576p, 720p, 900p, 1440p, 2160p
Contrast ratio (typical)	1000:1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Viewing angle, horizontal	85 °
Viewing angle, vertical	85 °
Master (outer) case weight	28.7 lbs
Master (outer) case length	39.9"
Master (outer) case width	10.6"
Master (outer) case height	12.9"
Microphone frequency	90 - 16000 Hz
Microphone sensitivity	-36 dB
Maximum frame rate	30 fps
Zoom capability	Yes
Diagonal field of view	90 °
HDMI input ports quantity	1
HDMI output ports quantity	2
Camera included	Yes
Optical zoom	5 x
Combined zoom	15 x
Sound pressure level (max)	90 dB
Power cable length	59.1"
Number of microphones	6
PTZ control	Yes
Noise reduction	Yes
Motion sensor	Yes
HDMI cable length	78.7"
Echo cancellation	Yes
Horizontal field of view	82.1 °
Remote control interface	Bluetooth
Driver diameter	2.76"
Interface module dimensions (W x D x H)	9.69 x 6.74 x 2.21"
Interface module weight	2.2 lbs
Microphone pick-up range	177.2"
Telepresence	No
Vertical field of view	52.2 °
Interface module RJ-45 ports quantity	1
Line-out impedance	4 Ω
Oleophobic coating	Yes
Output level	92/99 dB
Audio beamforming	Yes
Sample rates	0 - 48 kHz
Technical details
Product color	Graphite
Features
Output voltage Total Harmonic Distortion (THD)	2 %
Built-in speaker(s)	Yes
Ergonomics
Display resolution	1280 x 800 pixels
Pan range	-25 - 25 °
Tilt angle range	-15 - 15 °
Packaging data
Package width	10.4"
Package depth	39.6"
Package height	12.4"
Package weight	28.7 lbs
Mounting kit	Yes
Packaging content
AC adapter included	Yes
Performance
Ethernet LAN	Yes
Other features
Quick start guide	Yes
Number of batteries supported	2
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	3
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Power
Power source type	AC
AC input voltage	100 - 240 V
DC input voltage	19 V
Network
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95 %
Display
Display diagonal	10.1"
System requirements
Windows operating systems supported	Windows 10, Windows 11
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Battery
Battery technology	Lithium
Security
Security algorithms	128-bit AES
Protocols
Supported network protocols	IPv4, IPv6
Microphone
Microphone direction type	Omnidirectional
Headset
Headset included	No
