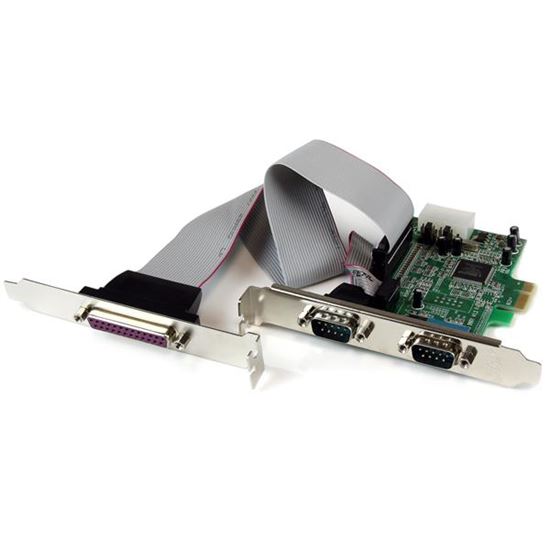

StarTech.com PEX2S5531P interface cards/adapter Internal Serial 1

StarTech.com PEX2S5531P interface cards/adapter Internal Serial 2

StarTech.com PEX2S5531P interface cards/adapter Internal Serial 3

StarTech.com PEX2S5531P interface cards/adapter Internal Serial

Name: StarTech.com PEX2S5531P interface cards/adapter Internal Serial
SKU: STCPEX2S5531P
Price: 78.73 USD
Availability: InStock

StarTech.com PEX2S5531P. Host interface: PCIe, Output interface: Serial, Expansion card standard: PCIe 1.0a. Product color: Green, Stainless steel. Chipset: ASIX - MCS9901CV-CC, Baud rate: 460.8 Kbit/s, FIFO (First In, First Out): 128 B. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Mac operating systems supported: Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 4.72" (120 mm), Depth: 4.13" (105 mm), Height: 0.787" (20 mm)

Manufacturer: StarTech.com

SKU: STCPEX2S5531P

Manufacturer part number: PEX2S5531P

UPC: 0065030841764

Price: $78.73

Qty:

Add 1 parallel port and 2 RS-232 serial ports to your standard or low-profile computer through a PCI Express expansion slot

The PEX2S5531P 2S1P PCI Express Card turns a PCI Express slot into two RS232 (DB9) serial ports and one Parallel port. The adapter card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards which use a bridge chip design.

Compatible with a broad range of operating systems including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4, this 2 Port Serial 1 Port Parallel PCI-Express Card also features an optional low profile/half-height bracket that allows the card to be installed in virtually any computer case, regardless of the case form factor.

This product is a replacement for our PEX2S5521P card.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Overview
Specifications
Contact Us

Products specifications

Attribute name	Attribute value
Width	4.72"
Depth	4.13"
Height	0.787"
Weight	3.95 oz
Flow Control type	DTR/DSR, RTS/CTS, XON/XOFF
Expansion card standard	PCIe 1.0a
Drivers included	Yes
Master (outer) case length	26.7"
Master (outer) case width	14"
Master (outer) case height	12.6"
Harmonized System (HS) code	84733020
Compliance certificates	CE, RoHS
Design
Internal	Yes
Technical details
Product color	Green, Stainless steel
Sustainability certificates	CE, RoHS
Supported protocols	EPP, ECP, SPP, PS/2
Baud rate	460.8 Kbit/s
Serial interface type	RS-232
Features
Linux operating systems supported	Yes
FIFO (First In, First Out)	128 B
Chipset	ASIX - MCS9901CV-CC
Packaging data
Package width	5.71"
Package depth	6.85"
Package height	1.22"
Package weight	7.34 oz
Logistics data
Quantity per master (outer) case	75 pc(s)
Packaging content
Manual	Yes
Ports & interfaces
Output interface	Serial
Host interface	PCIe
Serial ports quantity	2
Parallel ports quantity	1
Operational conditions
Operating temperature (T-T)	-10 - 80 °C
Storage temperature (T-T)	-20 - 100 °C
Operating relative humidity (H-H)	5 - 85 %
Software
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
System requirements
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 95, Windows 98SE, Windows CE, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Other operating systems supported	Windows Embedded POSReady 2009, Windows Embedded Standard 2009
