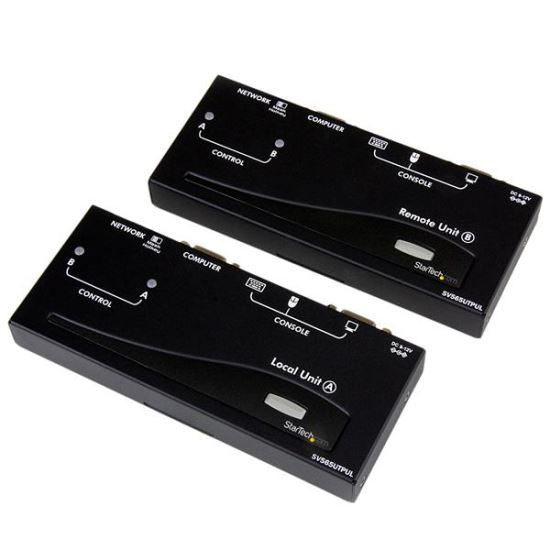

StarTech.com SV565UTPUL KVM extender Transmitter & receiver 1
StarTech.com SV565UTPUL KVM extender Transmitter & receiver 1
StarTech.com SV565UTPUL KVM extender Transmitter & receiver 2
StarTech.com SV565UTPUL KVM extender Transmitter & receiver 3
StarTech.com SV565UTPUL KVM extender Transmitter & receiver 4
StarTech.com SV565UTPUL KVM extender Transmitter & receiver 5

StarTech.com SV565UTPUL KVM extender Transmitter & receiver

StarTech.com SV565UTPUL. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 11811" (300 m). Transmitter video port type: VGA, Transmitter local keyboard/mouse port type: USB. Receiver local video port type: VGA, Receiver local keyboard/mouse port type: USB. AC input voltage: 110-240 V, AC adapter output voltage: 12 V, AC adapter output current: 1.5 A. Transmitter width: 6.18" (15.7 cm), Transmitter depth: 2.76" (7 cm), Transmitter height: 0.787" (2 cm)
Manufacturer: StarTech.com
SKU: STCSV565UTPUL
Manufacturer part number: SV565UTPUL
UPC: 0065030839259
$535.48
The SV565UTPUL Long Range USB VGA KVM Console Extender over Cat5 UTP (1000 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 1000ft (300m) away.

You can use your existing USB keyboard, USB mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage
- Great for high definition resolutions, with support of UXGA (1600 x 1200) and WUXGA (1920 x 1200)
- Remote to local switching means that the computer or console being extended can still be accessed locally without the need to unplug/replug any connections
- Backed by a StarTech.com 3 year hardware warranty and lifetime technical support
The SV565UTPUL Long Range USB VGA KVM Console Extender over Cat5 UTP (1000 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 1000ft (300m) away.

You can use your existing USB keyboard, USB mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage
- Great for high definition resolutions, with support of UXGA (1600 x 1200) and WUXGA (1920 x 1200)
- Remote to local switching means that the computer or console being extended can still be accessed locally without the need to unplug/replug any connections
- Backed by a StarTech.com 3 year hardware warranty and lifetime technical support

Products specifications

Attribute name Attribute value
Weight 3.31 lbs
Type Transmitter & receiver
AC adapter output voltage 12 V
Harmonized System (HS) code 84733080
Maximum analog resolution 1920 x 1200 pixels
Receiver weight 3.31 lbs
Receiver width 6.18"
Receiver depth 2.76"
Receiver height 0.787"
Transmitter weight 3.31 lbs
Transmitter width 6.18"
Transmitter depth 2.76"
Transmitter height 0.787"
KVM port selection Hotkeys, Push-buttons
Transmitter video port type VGA
Transmitter local keyboard/mouse port type USB
Receiver local keyboard/mouse port type USB
Technical details
Product color Black
Features
Plug and Play Yes
Maximum resolution 1920 x 1200 pixels
Packaging data
Package width 7.76"
Package depth 11.6"
Package height 2.83"
Package weight 3.02 lbs
Packaging content
Manual Yes
Cables included KVM, USB, VGA
Performance
Maximum transfer distance 11811"
Other features
Rack mounting No
Ports & interfaces
Connectivity technology Wired
Power
AC input voltage 110-240 V
AC adapter output current 1.5 A
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80 %
Receiver
Receiver local video port type VGA
*
*
*

Products specifications

Attribute name Attribute value
Weight 3.31 lbs
Type Transmitter & receiver
AC adapter output voltage 12 V
Harmonized System (HS) code 84733080
Maximum analog resolution 1920 x 1200 pixels
Receiver weight 3.31 lbs
Receiver width 6.18"
Receiver depth 2.76"
Receiver height 0.787"
Transmitter weight 3.31 lbs
Transmitter width 6.18"
Transmitter depth 2.76"
Transmitter height 0.787"
KVM port selection Hotkeys, Push-buttons
Transmitter video port type VGA
Transmitter local keyboard/mouse port type USB
Receiver local keyboard/mouse port type USB
Technical details
Product color Black
Features
Plug and Play Yes
Maximum resolution 1920 x 1200 pixels
Packaging data
Package width 7.76"
Package depth 11.6"
Package height 2.83"
Package weight 3.02 lbs
Packaging content
Manual Yes
Cables included KVM, USB, VGA
Performance
Maximum transfer distance 11811"
Other features
Rack mounting No
Ports & interfaces
Connectivity technology Wired
Power
AC input voltage 110-240 V
AC adapter output current 1.5 A
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80 %
Receiver
Receiver local video port type VGA
