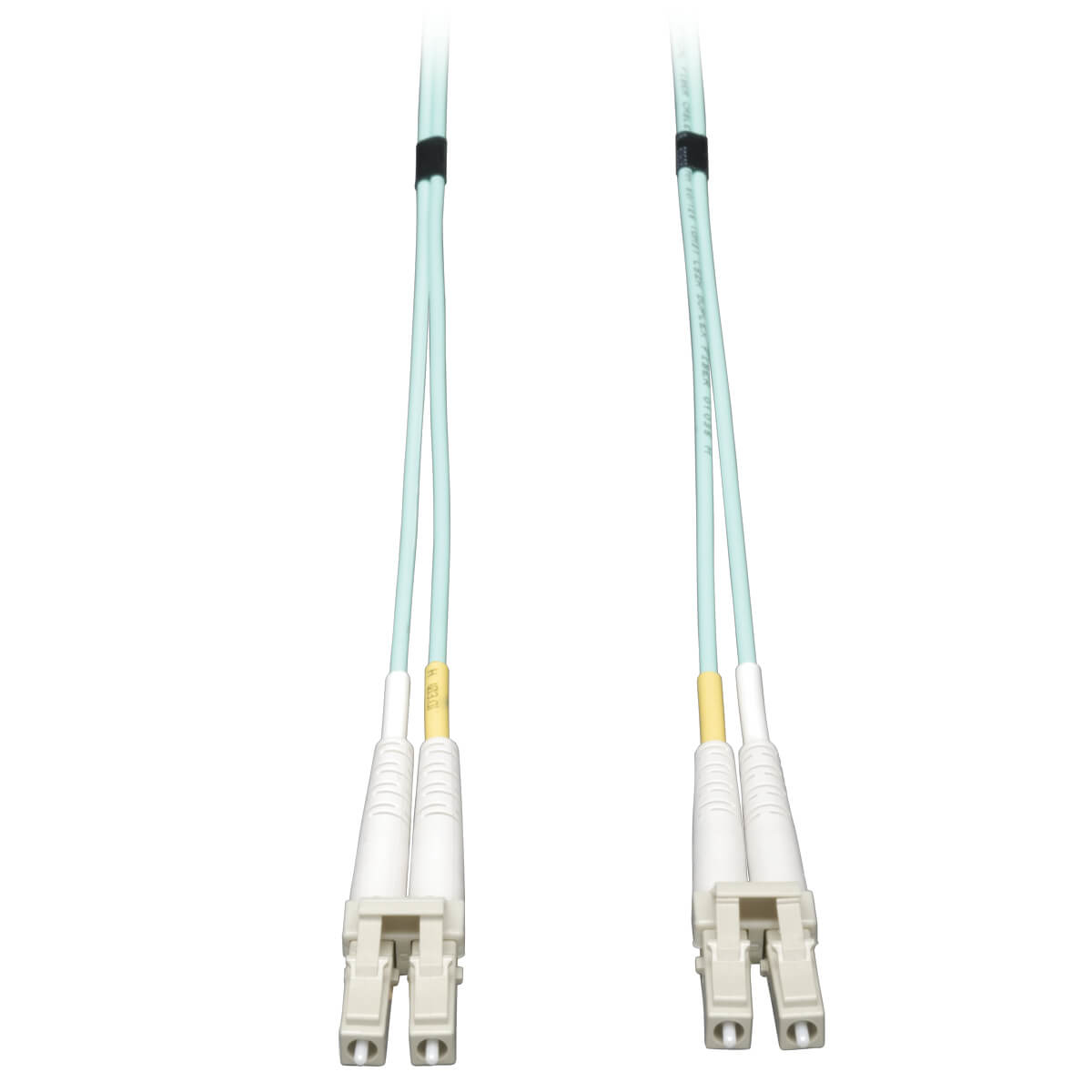

Tripp Lite N820-15M fiber optic cable 590.6" (15 m) LC OM3 Blue1
Tripp Lite N820-15M fiber optic cable 590.6" (15 m) LC OM3 Blue1 Tripp Lite N820-15M InfiniBand/fibre optic cable 590.6" (15 m) LC Blue1 Tripp Lite N820-15M fiber optic cable 590.6" (15 m) LC OM3 Blue2 Tripp Lite N820-15M InfiniBand/fibre optic cable 590.6" (15 m) LC Blue2

Tripp Lite N820-15M InfiniBand/fibre optic cable 590.6" (15 m) LC Blue

Tripp Lite N820-15M. Cable length: 590.6" (15 m), Fiber optic type: OM3, Connector 1: LC, Connector 2: LC, Core diameter: 50 µm, Full duplex
Manufacturer: Tripp Lite
SKU: 1052145
Manufacturer part number: N820-15M
UPC: 0037332124876
MSRP: $59.13
$42.00
OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables are for use with 10 Gb Ethernet applications. These 50/125um LC/LC Fiber Optic cables provide nearly four times the bandwidth over conventional 62.5um multimode fiber with performance rivaling that of singlemode cable at a much reduced cost. LOMMF cable allows 10 Gb serial transmission over extended distances in the 850 nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LANs, SANs and high-speed parallel interconnects for head-ends, central offices and data centers.



  • Designed for 10-Gig Ethernet applications...OM3 Rated
  • Backward compatible with existing 50/125 fiber
  • Max 10Gb distance of 300 meters @850nm
  • Low-Smoke, Zero Halogen (LSZH) Aqua jacket
OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables are for use with 10 Gb Ethernet applications. These 50/125um LC/LC Fiber Optic cables provide nearly four times the bandwidth over conventional 62.5um multimode fiber with performance rivaling that of singlemode cable at a much reduced cost. LOMMF cable allows 10 Gb serial transmission over extended distances in the 850 nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LANs, SANs and high-speed parallel interconnects for head-ends, central offices and data centers.



  • Designed for 10-Gig Ethernet applications...OM3 Rated
  • Backward compatible with existing 50/125 fiber
  • Max 10Gb distance of 300 meters @850nm
  • Low-Smoke, Zero Halogen (LSZH) Aqua jacket
Products specifications
Attribute nameAttribute value
Master (outer) case GTIN (EAN/UPC)10037332124873
Master (outer) case weight2.71 lbs
Master (outer) case length7.3"
Master (outer) case width6.1"
Master (outer) case height14.8"
Country of OriginChina
Cable Length590.6"
Product colorBlue
Sustainability certificatesRoHS
Harmonized System (HS) code85447000
Compliance certificatesRoHS
Features
Wavelengths supported25 Gigabit Ethernet
Core diameter50 µm
Data transfer rate10 Gbit/s
Cladding diameter125 µm
Connector 1LC
Connector 2LC
Fiber optic typeOM3
Fiber mode structureMulti-mode
Connector 1 genderMale
Connector 2 genderMale
Jacket materialLow smoke zero halogen (LSZH)
Full duplexYes
Packaging data
Package width7"
Package depth0.5"
Package height9"
Package weight3.88 oz
Logistics data
Quantity per master (outer) case10 pc(s)
Other features
Core / cladding diameter50/125 µm
*
*
*
Products specifications
Attribute nameAttribute value
Master (outer) case GTIN (EAN/UPC)10037332124873
Master (outer) case weight2.71 lbs
Master (outer) case length7.3"
Master (outer) case width6.1"
Master (outer) case height14.8"
Country of OriginChina
Cable Length590.6"
Product colorBlue
Sustainability certificatesRoHS
Harmonized System (HS) code85447000
Compliance certificatesRoHS
Features
Wavelengths supported25 Gigabit Ethernet
Core diameter50 µm
Data transfer rate10 Gbit/s
Cladding diameter125 µm
Connector 1LC
Connector 2LC
Fiber optic typeOM3
Fiber mode structureMulti-mode
Connector 1 genderMale
Connector 2 genderMale
Jacket materialLow smoke zero halogen (LSZH)
Full duplexYes
Packaging data
Package width7"
Package depth0.5"
Package height9"
Package weight3.88 oz
Logistics data
Quantity per master (outer) case10 pc(s)
Other features
Core / cladding diameter50/125 µm
