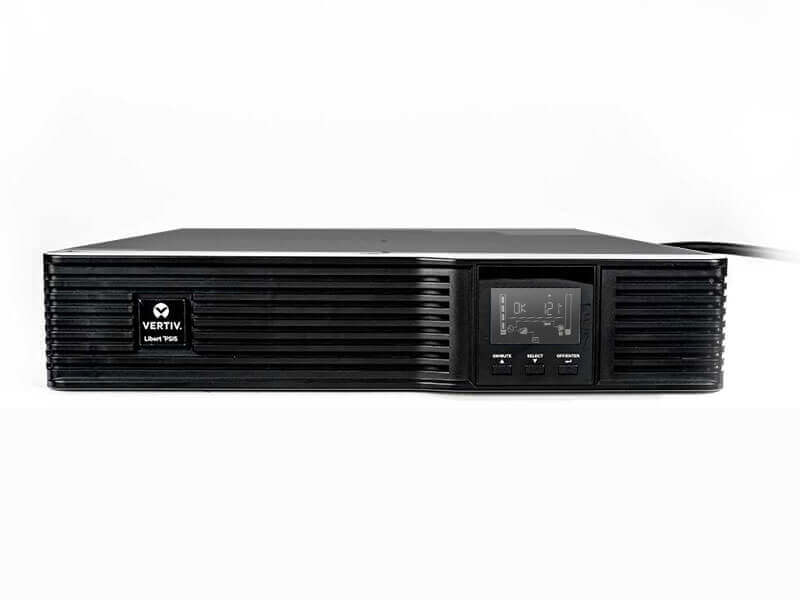

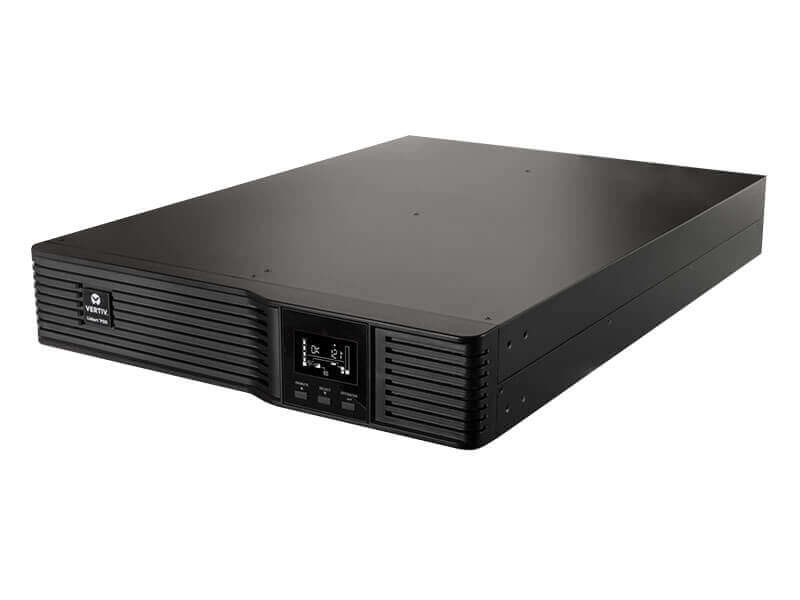

Vertiv Liebert PSI5-2200RT120LIN uninterruptible power supply (UPS) Line-Interactive 1.92 kVA 1920 W 7 AC outlet(s)

Vertiv Liebert PSI5-2200RT120LIN. UPS topology: Line-Interactive, Output power capacity: 1.92 kVA, Output power: 1920 W. AC outlet types: NEMA 5-15R, NEMA L5-20R, Power plug: NEMA 5-20, AC outlets quantity: 7 AC outlet(s). Battery technology: Lithium Iron Phosphate (LiFePO4). Form factor: Rackmount/Tower, Product color: Black, Rack capacity: 2U. Safety: UL 1778, c-UL-us
Manufacturer: Vertiv
SKU: 6036404
Manufacturer part number: PSI5-2200RT120LIN
UPC: 0767041034585
MSRP: $3,784.00
$3,026.69
The Liebert® PSI5 Lithium-Ion UPS is ideally suited to protect critical infrastructure in edge or distributed IT applications. Lithium-ion batteries have a life expectancy of 8-10years, which is up to 3 times longer than VRLA batteries. That translates to fewer (if any) battery replacements over the lifespan of the UPS, which means savings on batteries as well as the labor to install them – an especially important issue at remote locations with few or no IT personnel on site. It adds up to more than 50% lower total cost of ownership vs. VLRA batteries. The Liebert PSI5 Lithium-Ion line interactive UPS includes automatic voltage regulation (AVR) technology, which protects against utility voltage fluctuation to extend battery life by maximizing time on utility power, and provides premium protection from power disturbances. In battery mode, the Liebert PSI5 UPS delivers pure sine wave output to protect sensitive servers and networking equipment. With up to 20 min. of runtime at half load and 9 min. at full load – more than comparable competing models – the Liebert PSI5 Lithium-Ion UPS provides plenty of runtime during an outage for an orderly shutdown. It comes with a rotating LCD display to allow both rack and tower configurations, provides real time information regarding UPS status and operating conditions, and supports remote monitoring. It's also highly energy efficient, delivering up to 97% efficiency at full load in normal operating mode. You can rest assured your business is protected with this Vertiv solution, which includes a 5-year full factory warranty. The Liebert PSI5 Lithium-Ion UPS is a true low-maintenance, set-it-and-forget-it solution.
The Liebert® PSI5 Lithium-Ion UPS is ideally suited to protect critical infrastructure in edge or distributed IT applications. Lithium-ion batteries have a life expectancy of 8-10years, which is up to 3 times longer than VRLA batteries. That translates to fewer (if any) battery replacements over the lifespan of the UPS, which means savings on batteries as well as the labor to install them – an especially important issue at remote locations with few or no IT personnel on site. It adds up to more than 50% lower total cost of ownership vs. VLRA batteries. The Liebert PSI5 Lithium-Ion line interactive UPS includes automatic voltage regulation (AVR) technology, which protects against utility voltage fluctuation to extend battery life by maximizing time on utility power, and provides premium protection from power disturbances. In battery mode, the Liebert PSI5 UPS delivers pure sine wave output to protect sensitive servers and networking equipment. With up to 20 min. of runtime at half load and 9 min. at full load – more than comparable competing models – the Liebert PSI5 Lithium-Ion UPS provides plenty of runtime during an outage for an orderly shutdown. It comes with a rotating LCD display to allow both rack and tower configurations, provides real time information regarding UPS status and operating conditions, and supports remote monitoring. It's also highly energy efficient, delivering up to 97% efficiency at full load in normal operating mode. You can rest assured your business is protected with this Vertiv solution, which includes a 5-year full factory warranty. The Liebert PSI5 Lithium-Ion UPS is a true low-maintenance, set-it-and-forget-it solution.
Products specifications
Attribute nameAttribute value
Width17.2"
Depth20.1"
Height3.46"
Weight87.5 lbs
Response Time6 ms
Automatic Voltage Regulation (AVR)Yes
Emergency Power Off (EPO)Yes
Input Frequency55/65 Hz
Cable Length118.1"
Display TypeLCD
UPS topologyLine-Interactive
Output frequency57/63 Hz
Rack mount kitYes
Number of input phases1
Number of output phases1
Emergency Power Off (EPO) connectorYes
USB port typeUSB Type-B
Design

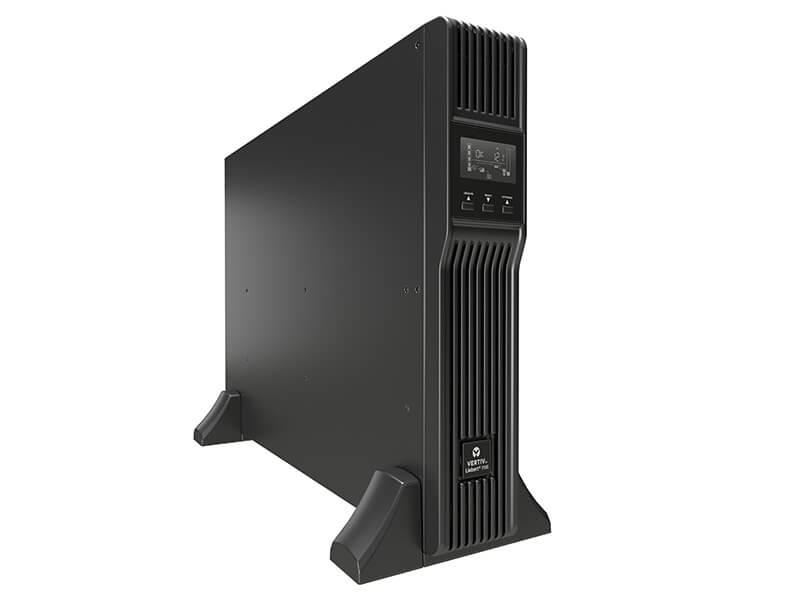

Form factorRackmount/Tower
Technical details
Product colorBlack
Features
Rack capacity2U
SafetyUL 1778, c-UL-us
Output power1920 W
Noise level55 dB
Audible alarm(s)Yes
Surge energy rating1372 J
Input operation voltage (min)75 V
Input operation voltage (max)146 V
Output operation voltage (min)100 V
Output operation voltage (max)125 V
Efficiency96 %
WaveformPure sine
Surge protectionYes
Packaging data
Package width10.2"
Package depth26.5"
Package height21.7"
Package weight118.6 lbs
Packaging content
ManualYes
Performance
Cabling technology10/100Base-T
Ports & interfaces
AC outlets quantity7 AC outlet(s)
AC outlet typesNEMA 5-15R, NEMA L5-20R
Ethernet LAN (RJ-45) ports2
USB 2.0 ports quantity1
Power plugNEMA 5-20
USB portYes
Power
Maximum current20 A
Output power capacity1.92 kVA
Power protection featuresCharge overcurrent, Short circuit
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)20 - 90 %
Storage relative humidity (H-H)20 - 90 %
Operating altitude0 - 118110.2"
Battery
Battery technologyLithium Iron Phosphate (LiFePO4)
Number of battery cells2
*
*
*
