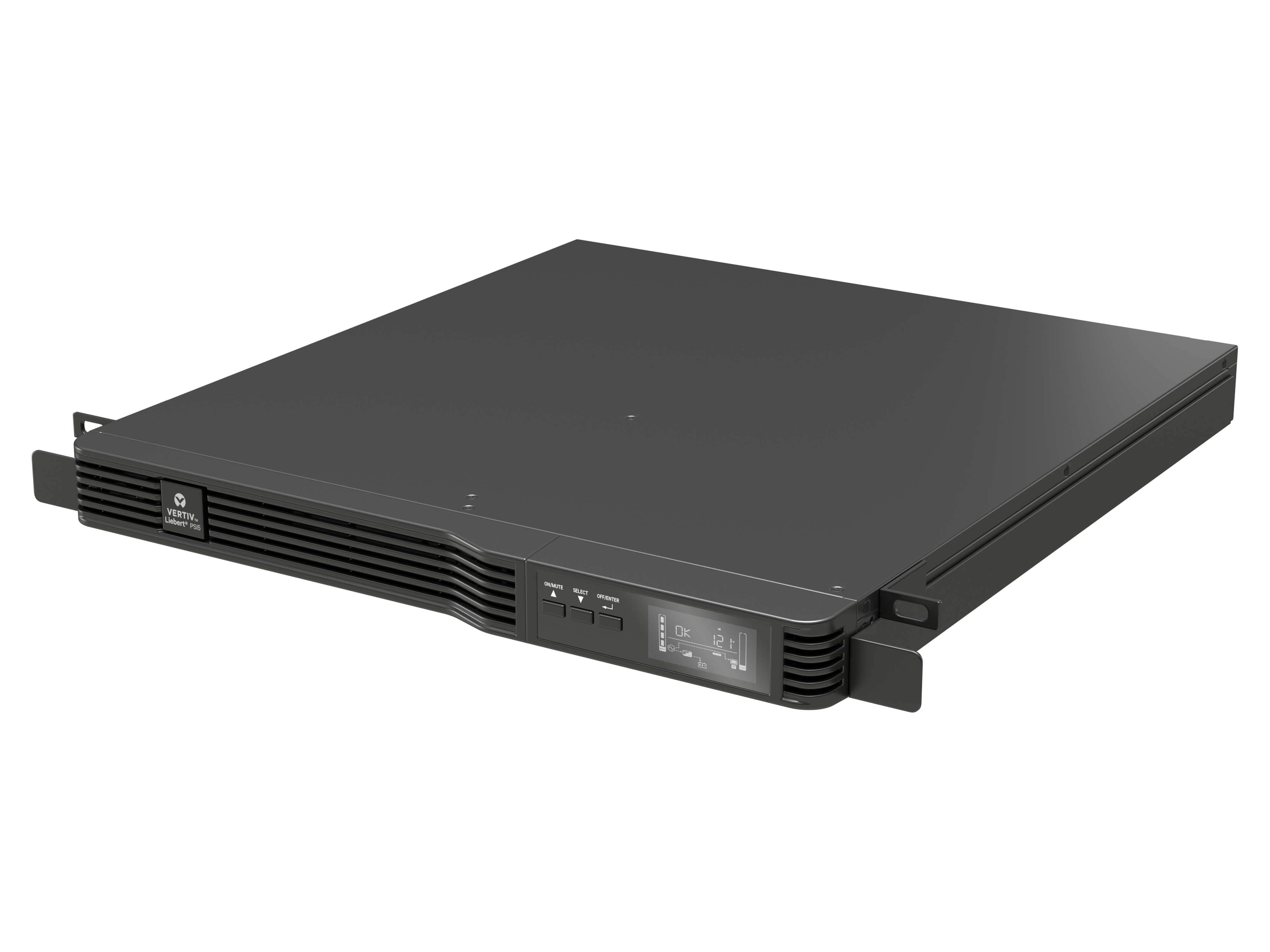

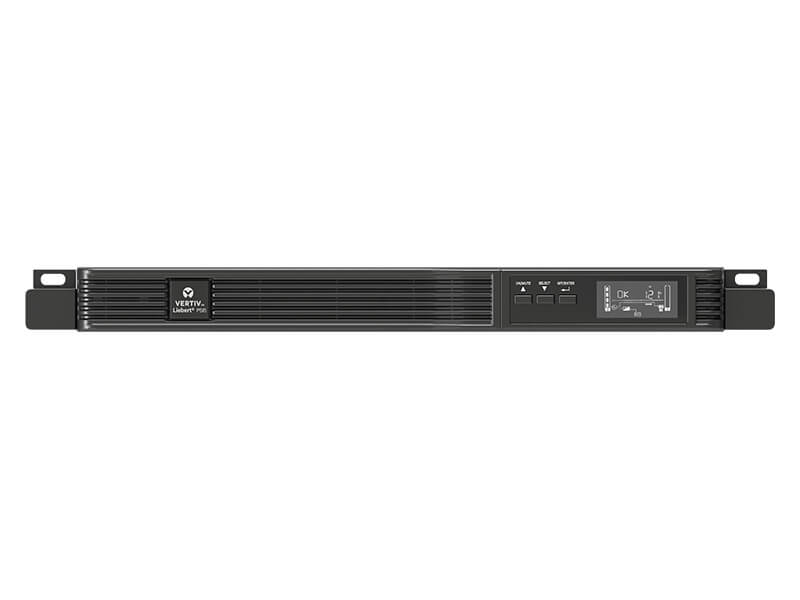

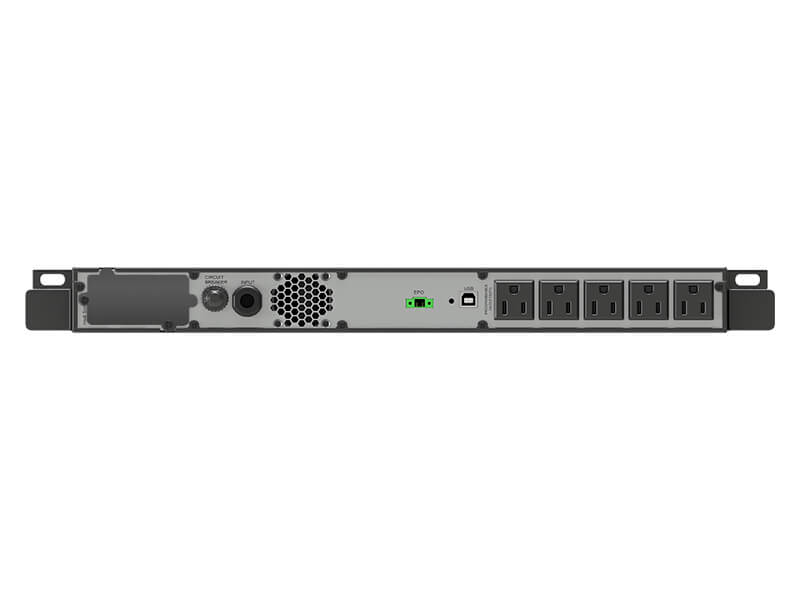

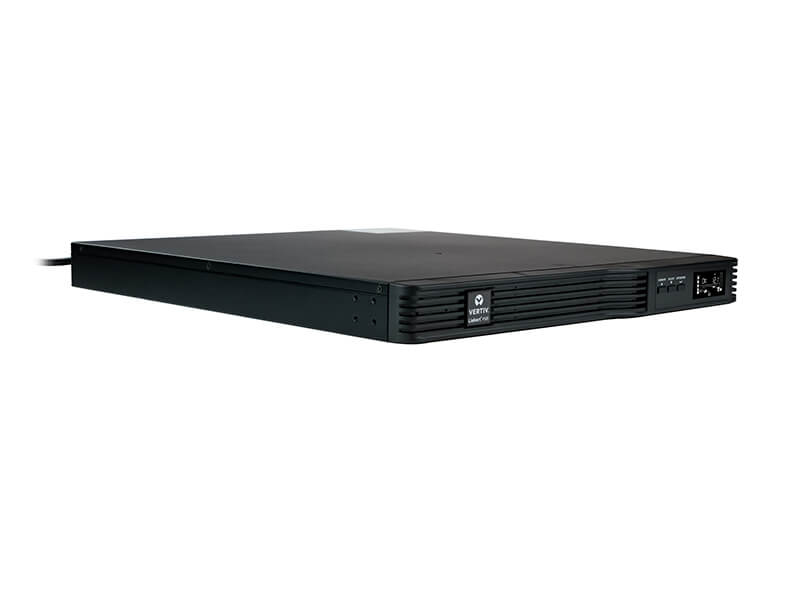

Vertiv Liebert PSI5-1500RM1201U uninterruptible power supply (UPS) Line-Interactive 1.44 kVA 1350 W 5 AC outlet(s)1

Vertiv Liebert PSI5-1500RM1201U uninterruptible power supply (UPS) Line-Interactive 1.44 kVA 1350 W 5 AC outlet(s)2

Vertiv Liebert PSI5-1500RM1201U uninterruptible power supply (UPS) Line-Interactive 1.44 kVA 1350 W 5 AC outlet(s)3

Vertiv Liebert PSI5-1500RM1201U uninterruptible power supply (UPS) Line-Interactive 1.44 kVA 1350 W 5 AC outlet(s)

Vertiv Liebert PSI5-1500RM1201U. UPS topology: Line-Interactive, Output power capacity: 1.44 kVA, Output power: 1350 W. AC outlet types: NEMA 5-15R, AC outlets quantity: 5 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 6 V. Form factor: Rackmount, Product color: Black, Rack capacity: 1U. Certification: FCC Part 15, Class B UL 497 B

Manufacturer: Vertiv

SKU: 5707114

Manufacturer part number: PSI5-1500RM1201U

UPC: 0767041028034

MSRP: $1,506.00

Price: $1,203.31

Qty:

The Vertiv™ Liebert® PSI5 1U line interactive rack mount uninterruptible power supply (UPS) is designed to protect and extend the life of your electronic devices in school, home and office. It offers cost-effective protection from downtime and damage caused by power outages, brownouts, sags, surges or noise interference. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. It ensures availability of critical IT applications such as network closets and small data centers. This battery backup allows orderly shutdown of critical equipment. Add an optional communication card and remotely monitor up to 50 UPS systems through the free Vertiv™ Trellis™ Power Insight Application. It has a 2-year Vertiv warranty with optional extensions for up to 5 years total coverage. Not for sale in Vermont, Colorado, Washington.

Compact 1U rack space for the same features as a 2U rack mount UPS
Advanced, pure sine wave output power on battery
0.9 power factor, which means more usable power for connected devices
Voltage regulation from 83 to 159 VAC without using the battery
Less than 6 milliseconds transfer time to battery
LCD display panel, output overload, or low-battery or replace-battery warnings
Options for communication card for remote monitoring of devices

Overview
Specifications
Contact Us

Compact 1U rack space for the same features as a 2U rack mount UPS
Advanced, pure sine wave output power on battery
0.9 power factor, which means more usable power for connected devices
Voltage regulation from 83 to 159 VAC without using the battery
Less than 6 milliseconds transfer time to battery
LCD display panel, output overload, or low-battery or replace-battery warnings
Options for communication card for remote monitoring of devices

Products specifications

Attribute name	Attribute value
Width	17.2"
Depth	24.8"
Height	1.73"
Weight	100.5 lbs
Battery Capacity	9 Ah
Automatic Voltage Regulation (AVR)	Yes
Input Frequency	55/65 Hz
Cable Length	94.5"
Display Type	LCD
Control type	Buttons
Power factor	0.9
UPS topology	Line-Interactive
ECO mode	Yes
Output frequency	60 Hz
Design
Certification	FCC Part 15, Class B UL 497 B
Form factor	Rackmount
Technical details
Product color	Black
Features
Rack capacity	1U
Safety	UL 1778, c-UL-us Listed
Output power	1350 W
Noise level	45 dB
Input operation voltage (min)	75 V
Input operation voltage (max)	146 V
Output operation voltage (min)	100 V
Output operation voltage (max)	125 V
Efficiency	93 %
Waveform	Pure sine
Surge protection	Yes
Packaging data
Package width	22"
Package depth	28"
Package height	5.51"
Package weight	112.7 lbs
Ports & interfaces
AC outlets quantity	5 AC outlet(s)
AC outlet types	NEMA 5-15R
Power
Maximum current	16 A
Output power capacity	1.44 kVA
Power protection features	Over current, Short circuit
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	20 - 90 %
Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery voltage	6 V
Number of battery cells	4
